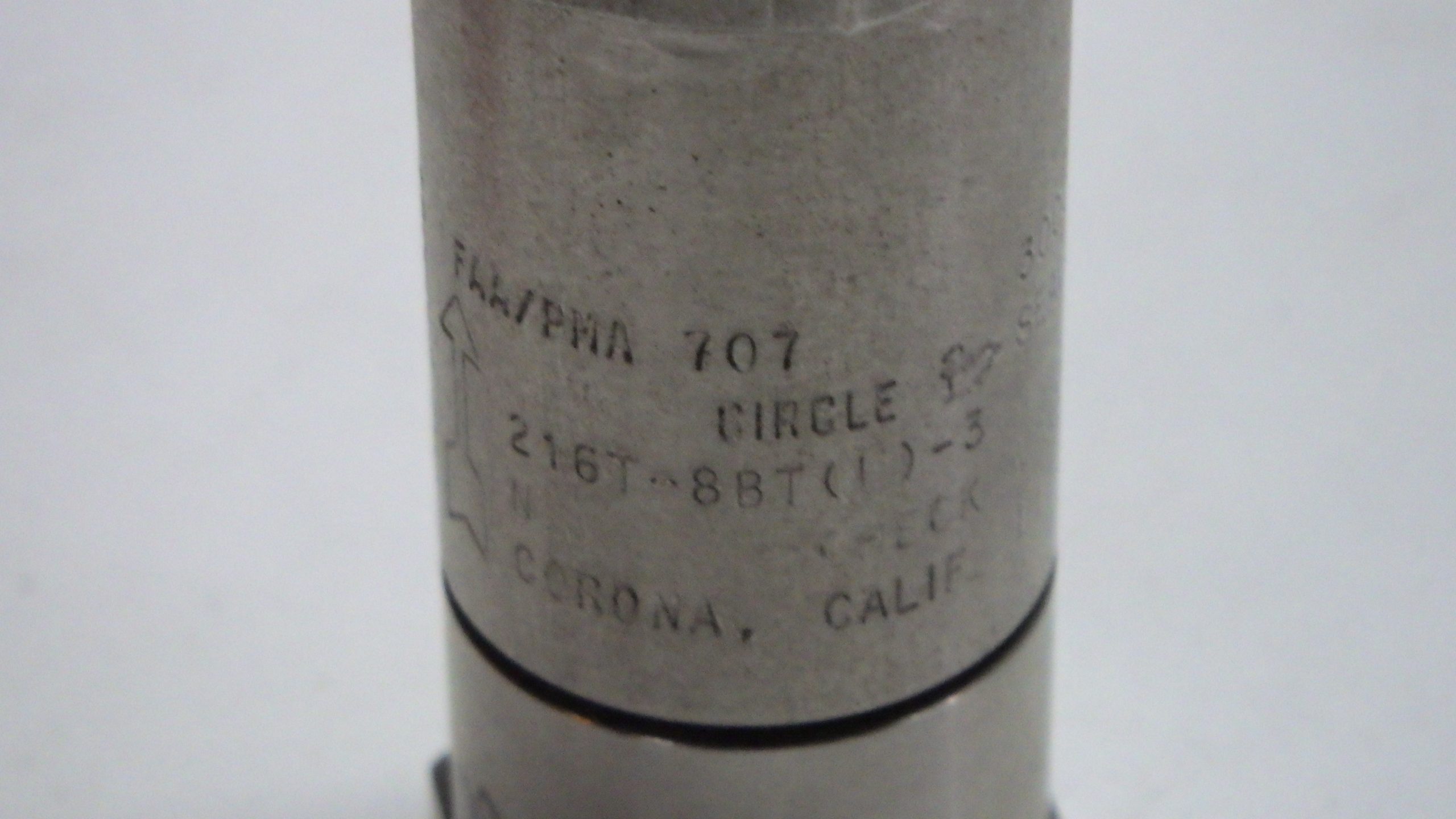

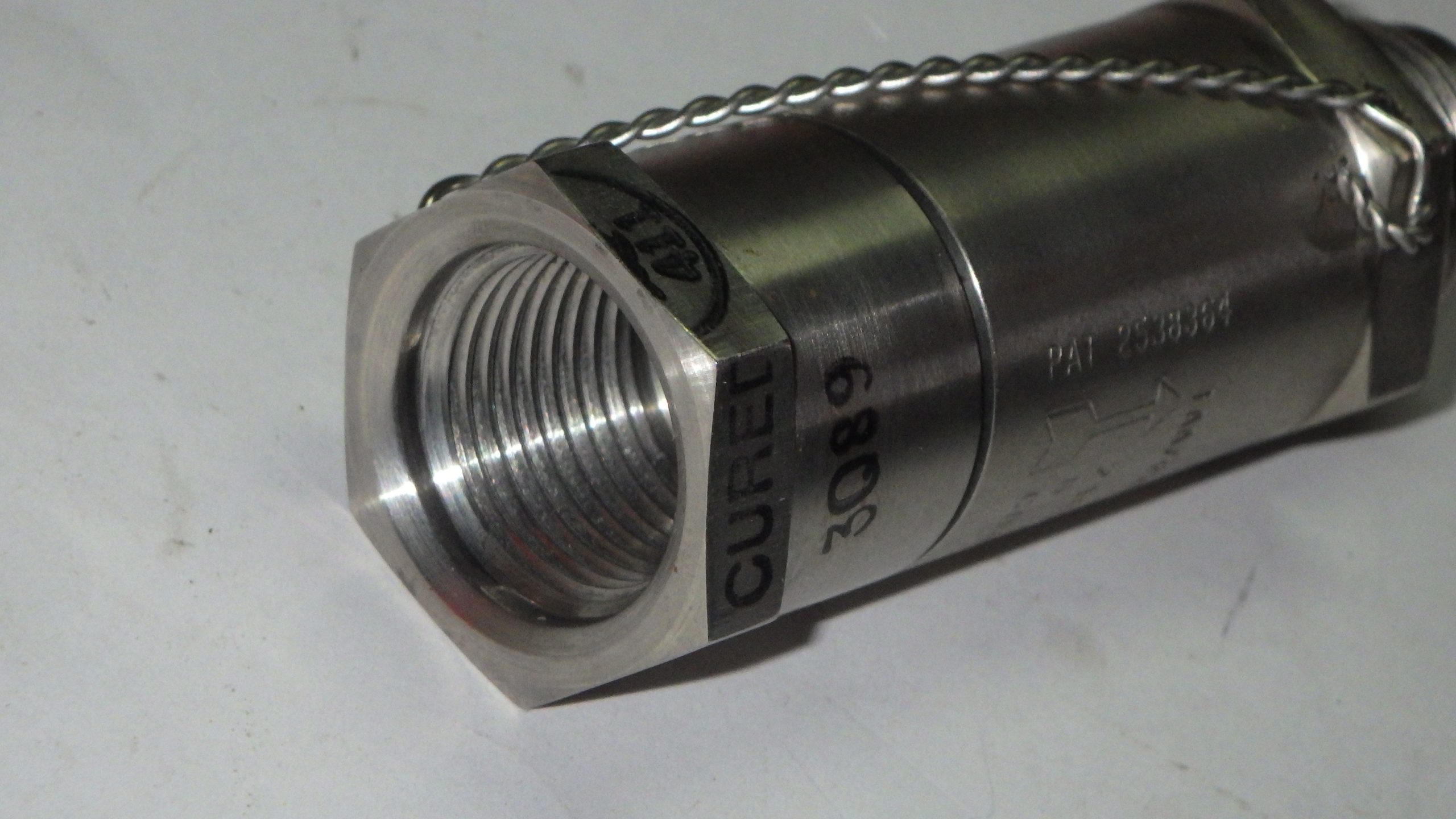

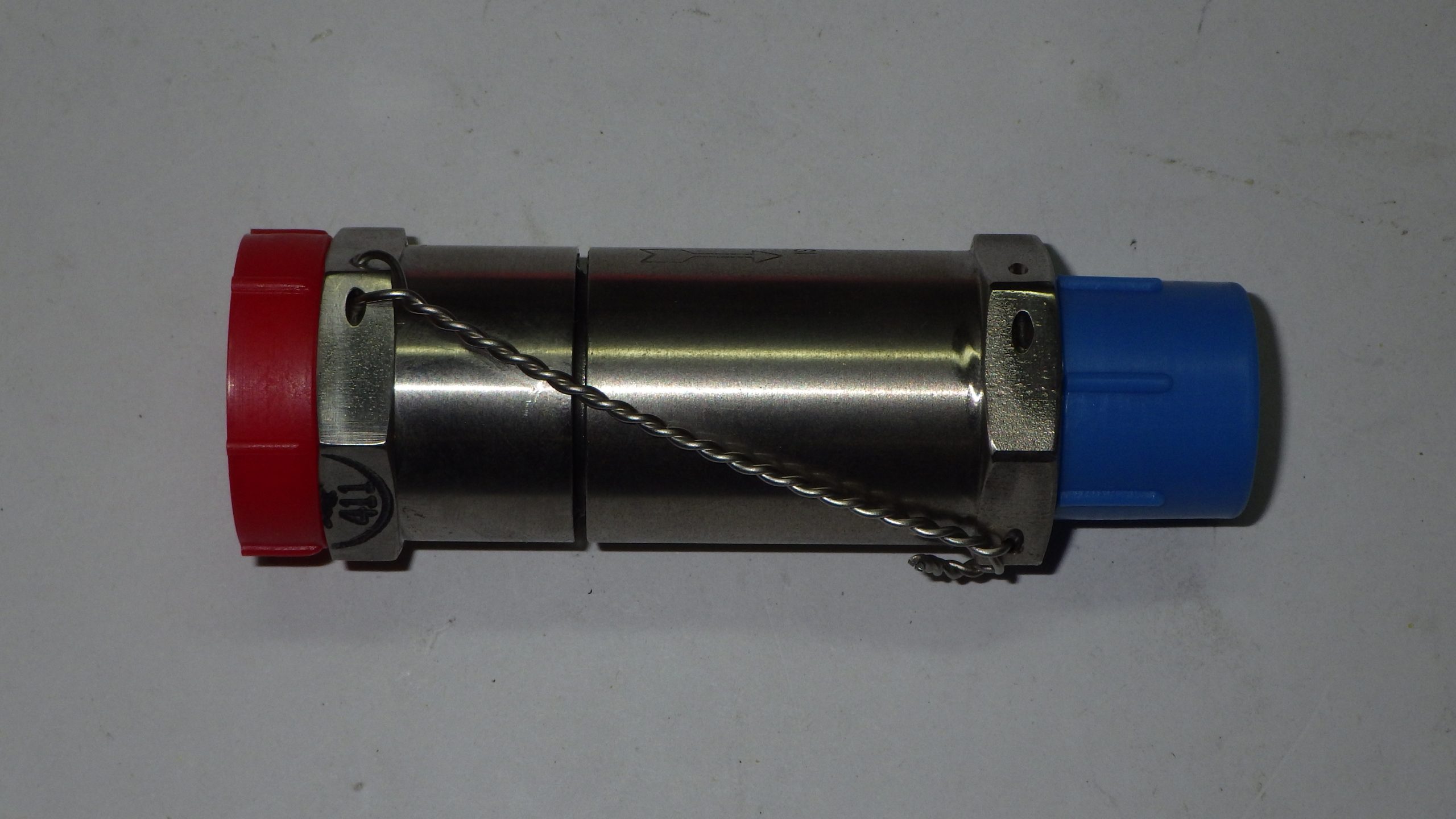

VALVE CHECK
P/N 216T-8BT
NSN 4820 01 167 0820
MFG. 91816 CIRCOR AEROSPACE, INC.
New Govt. Surplus, Supplier Code 03EF7


NSN:         4820-01-167-0820                INC: 05487               FIIG: A530B0
ITEM NAME:   VALVE,CHECK
DEFINITION:  A valve permitting flow in one direction only. It does not have a
             stem, except when equipped with a lever and weight and has no pressure
             adjustment. It may be inline or cartridge (manifold) design.


CHARACTERISTIC                          VALUE
THREAD CLASS                            3A 2ND END
THREAD DIRECTION                        RIGHT-HAND 2ND END
FLOW CONTROL DEVICE                     POPPET

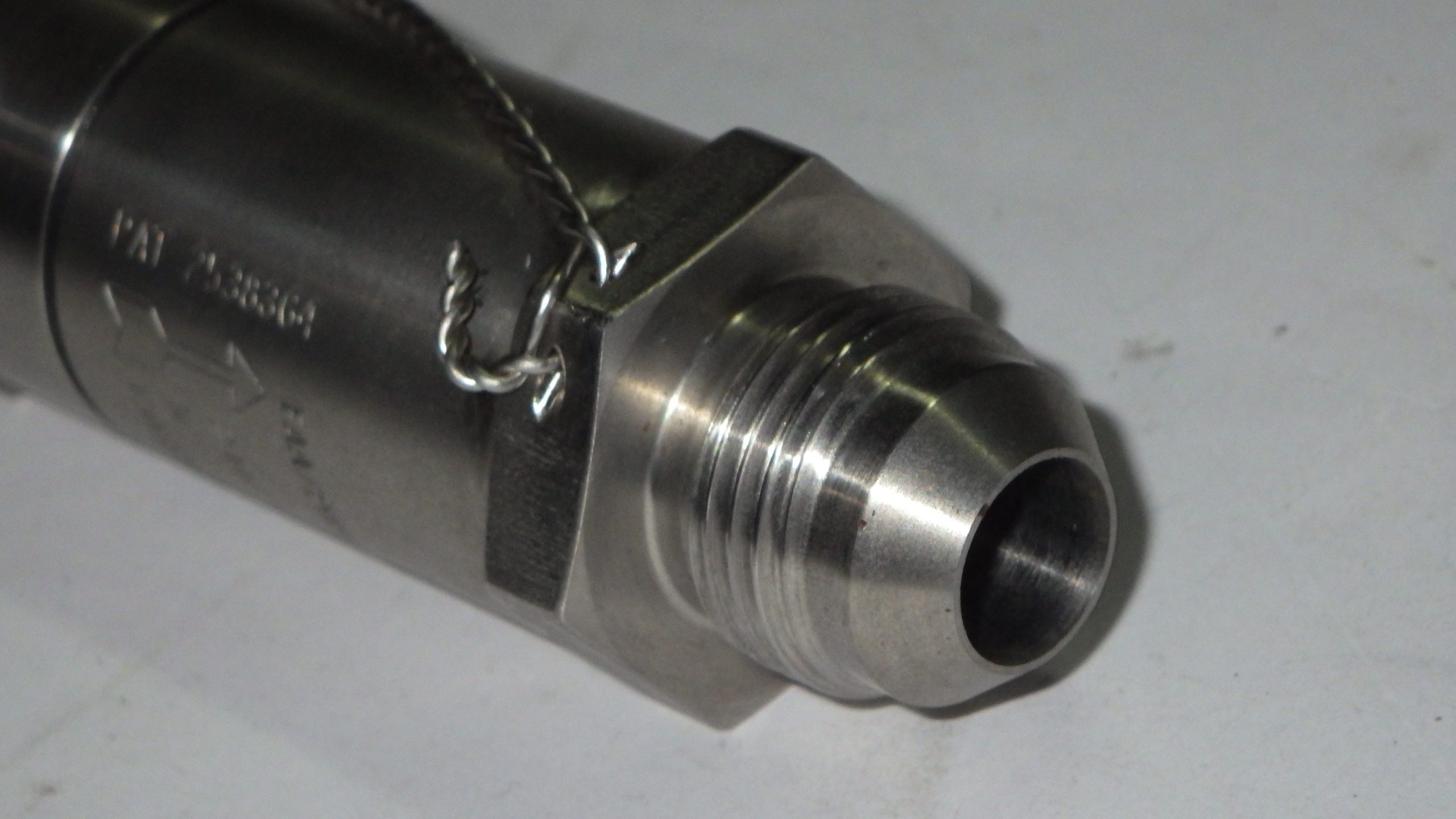

CONNECTION STYLE                        PLAIN (TUBE) 1ST END FLARED (TUBE) 2ND END
VALVE OPERATION METHOD                  AUTOMATIC
CONNECTION TYPE                         UNTHREADED INTERNAL TUBE 1ST END THREADED EXTERNAL
                                        TUBE 2ND END
MOUNTING POSITION                       HORIZONTAL
NOMINAL THREAD SIZE                     0.750 INCHES 2ND END
SEAT ANGLE                              37.0 DEGREES 2ND END
NOMINAL OUTSIDE DIAMETER                0.500 INCHES 1ST END
TUBE ACCOMMODATED
MATERIAL                                STEEL COMP 303 BODY
MATERIAL DOCUMENT AND                   AISI 303 ASSN STD SINGLE MATERIAL RESPONSE BODY
CLASSIFICATION
STYLE DESIGNATOR                        STRAIGHT THRU
THREAD SERIES DESIGNATOR                UNF 2ND END
