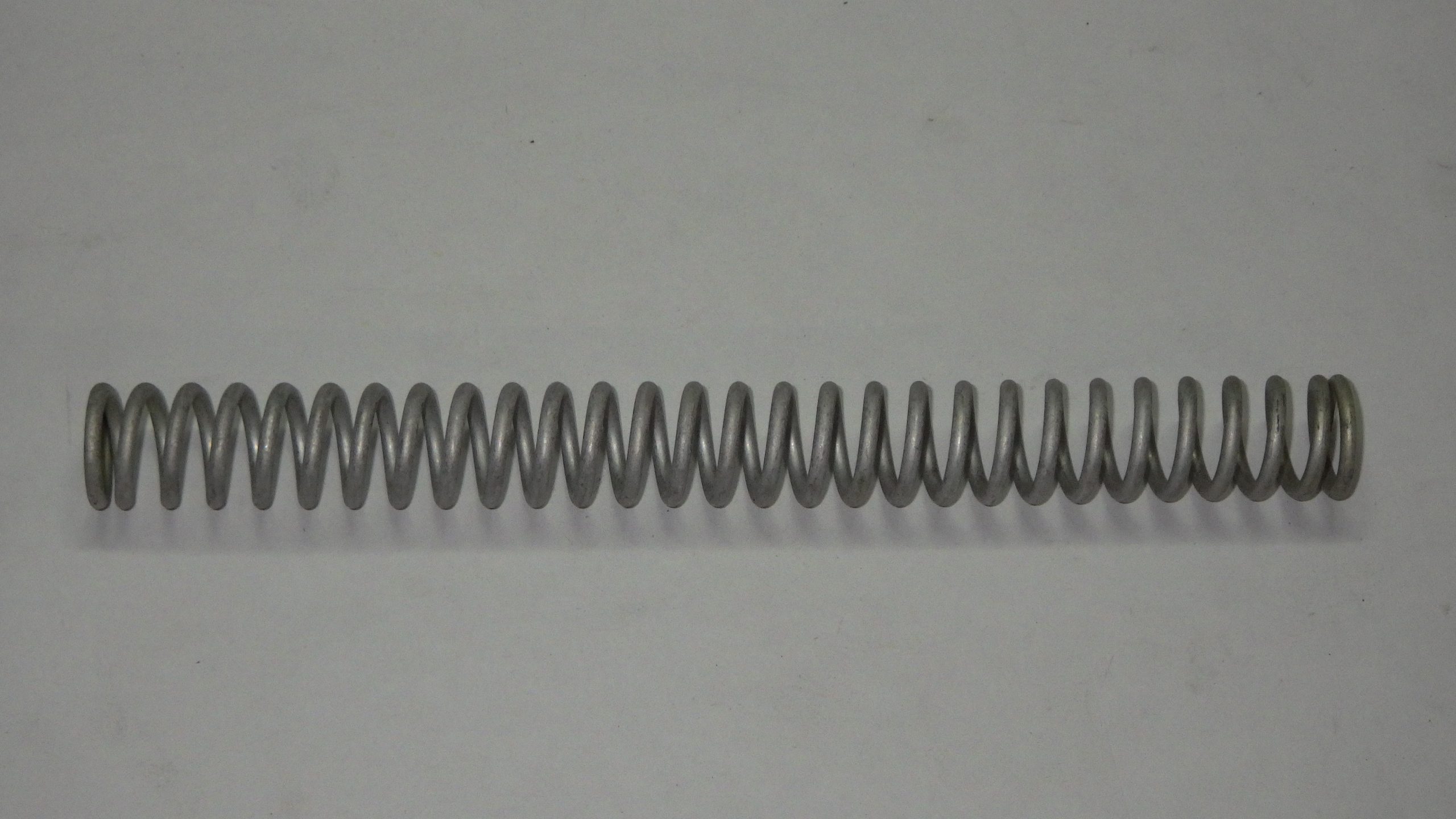

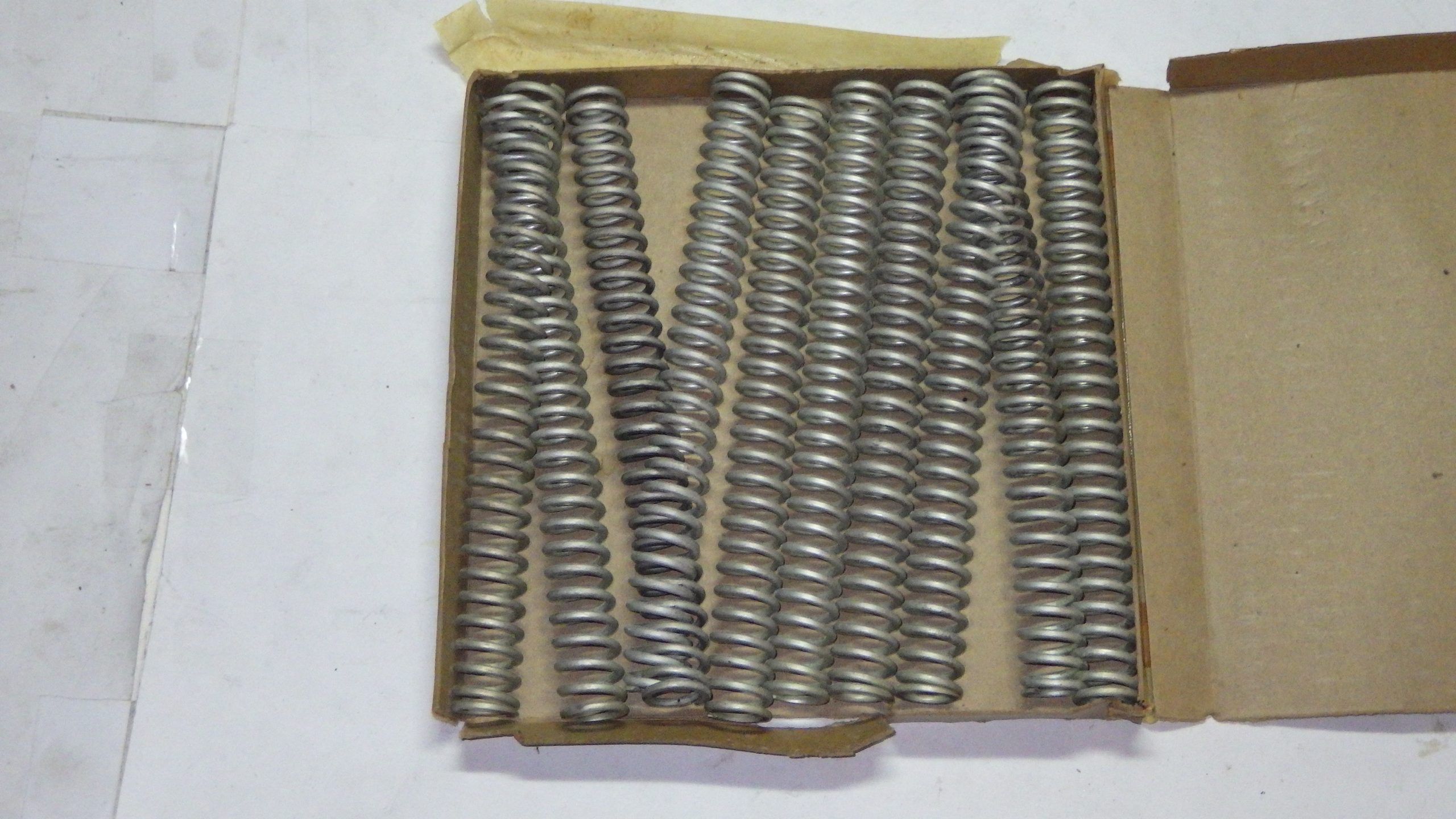

SPRING, HELICAL
P/N 76181
P/N 52A315B43
NSN 5360 00 515 3219
MFG NAVAIR AND NAVSEA

NEW GOV SURPLUS

ITEM NAME   SPRING,HELICAL,COMP
DEFINITION  An open coiled spring, wound in various forms and from different
             shapes and types of materials and finished at the ends, designed to
             provide resistance to compression forces. Excludes springs designed
             for thermal actuation (springs in which the torsion forces are
             designed to be counteracted by changes in temperature) and SPRING,
             REINFORCING, HOSE.


CHARACTERISTIC                          VALUE
INSIDE DIAMETER                         0.540 INCHES NOMINAL

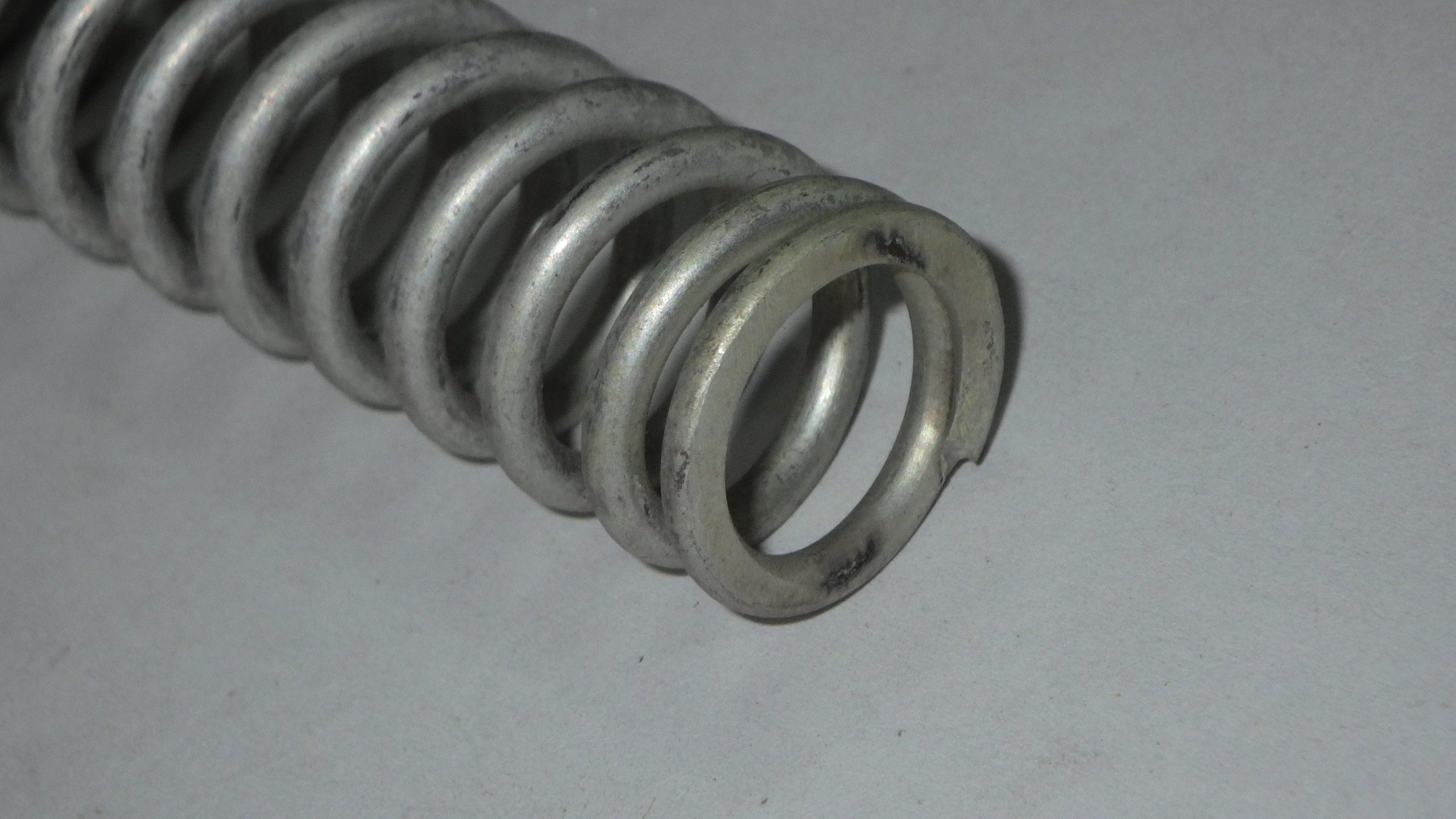

END STYLE                               SPRING END,SQUARED AND GROUND BOTH ENDS

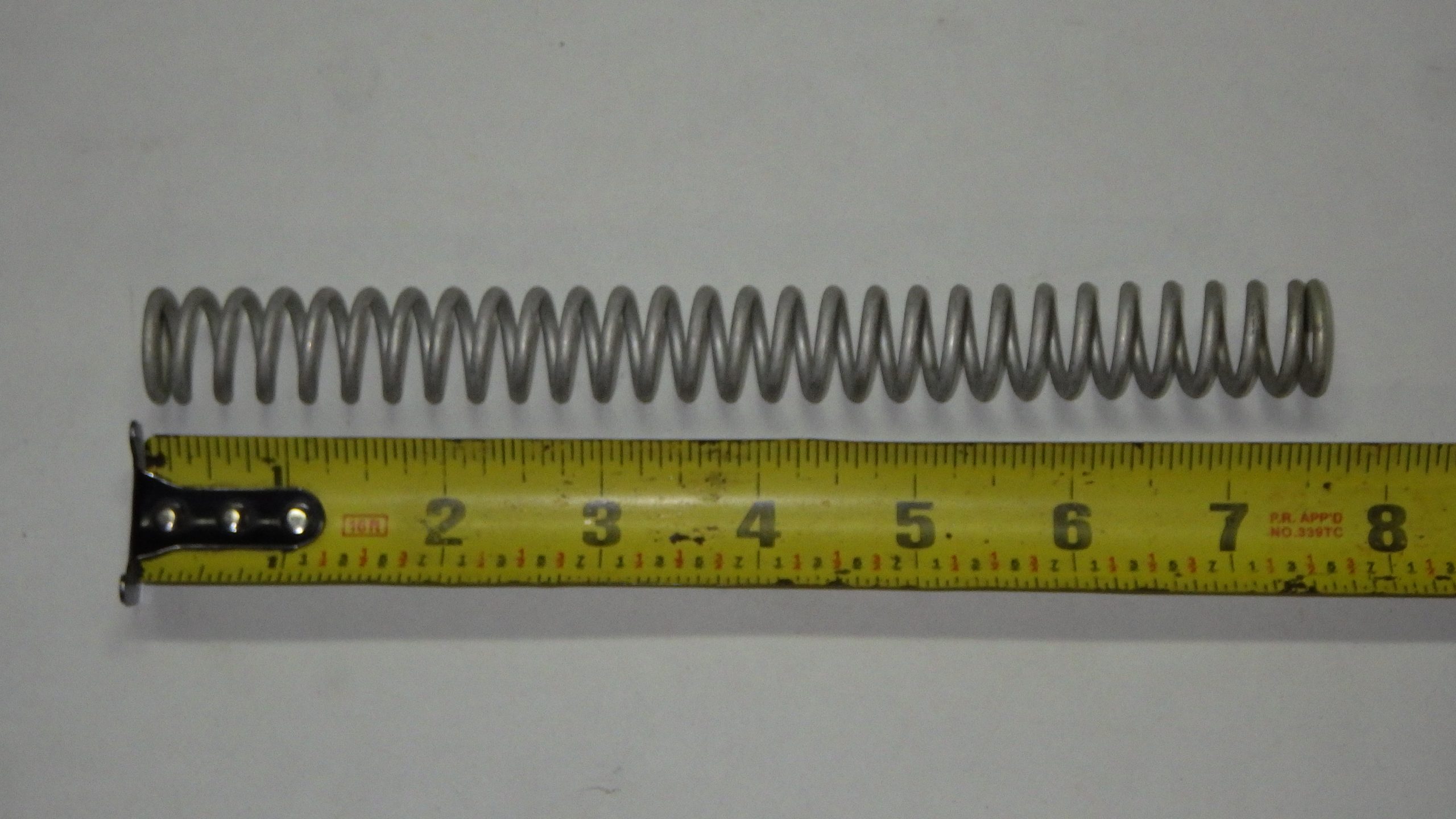

SPRING FREE LENGTH                      7.500 INCHES NOMINAL
COIL HELIX DIRECTION                    RIGHT-HAND OR LEFT-HAND
SPRING FREE OUTSIDE                     0.750 INCHES NOMINAL
DIAMETER
MATERIAL                                STEEL COMP 1065 OVERALL
SURFACE TREATMENT                       CADMIUM OVERALL
STYLE DESIGNATOR                        CYLINDRICAL
