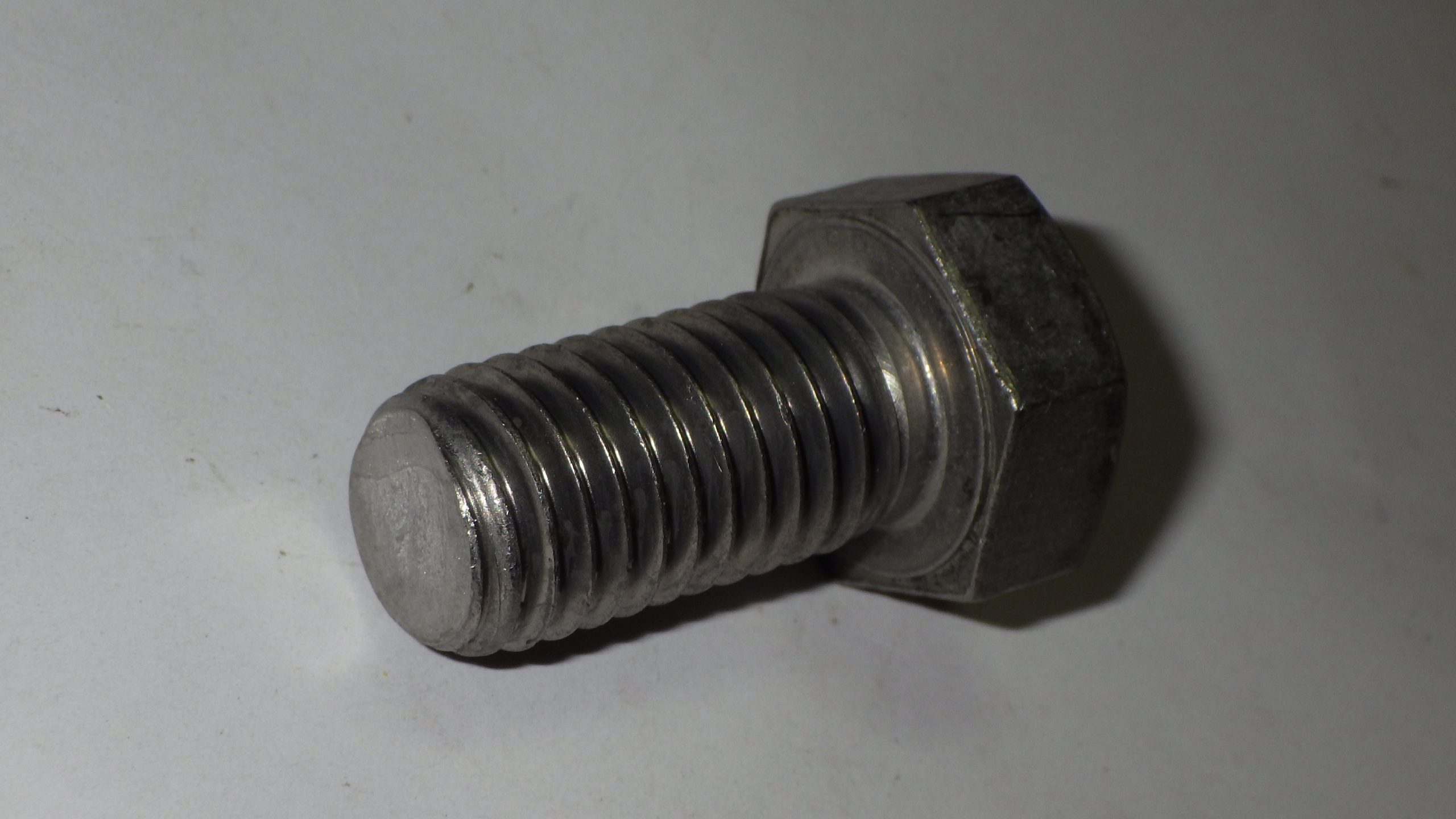

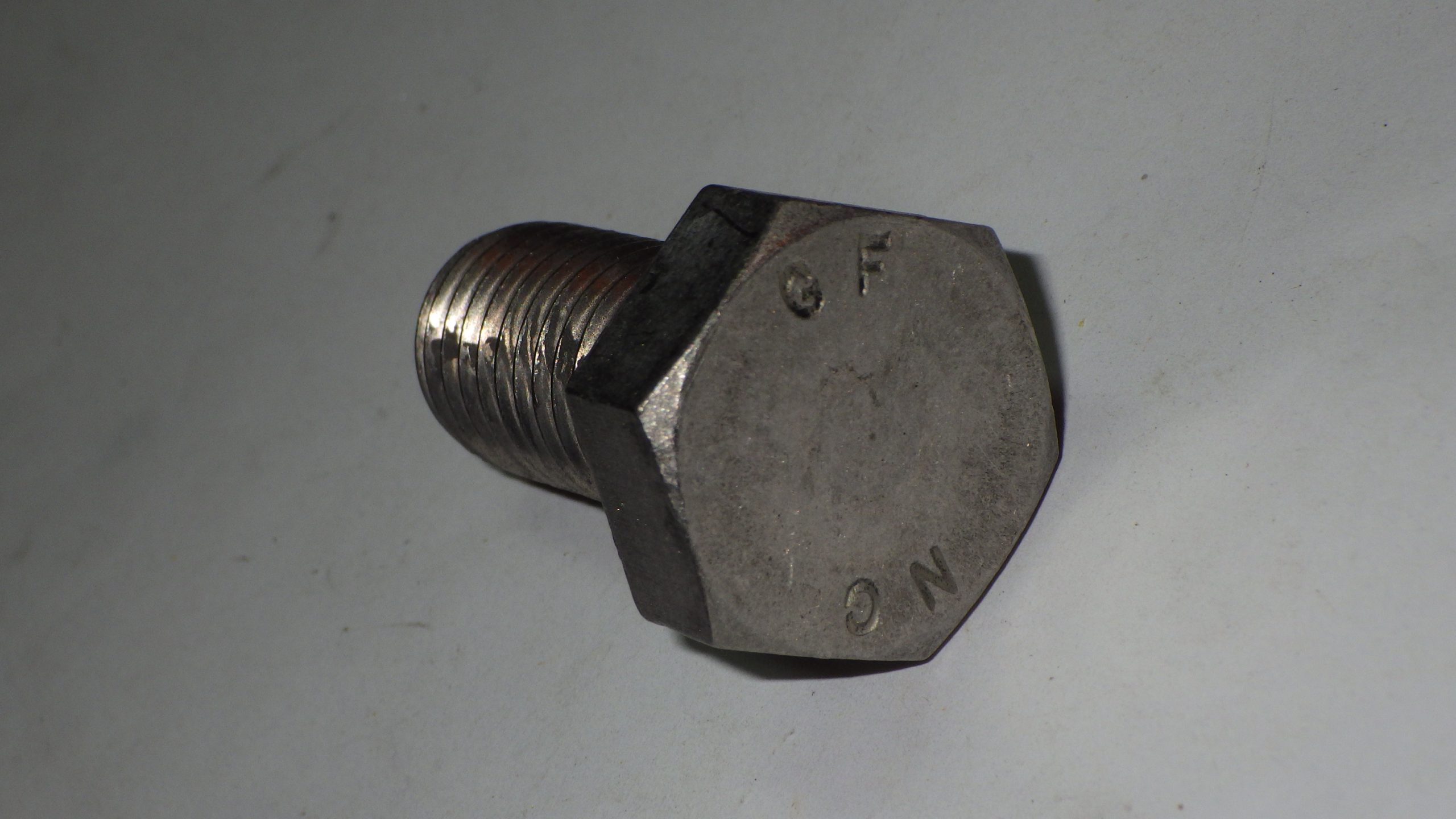

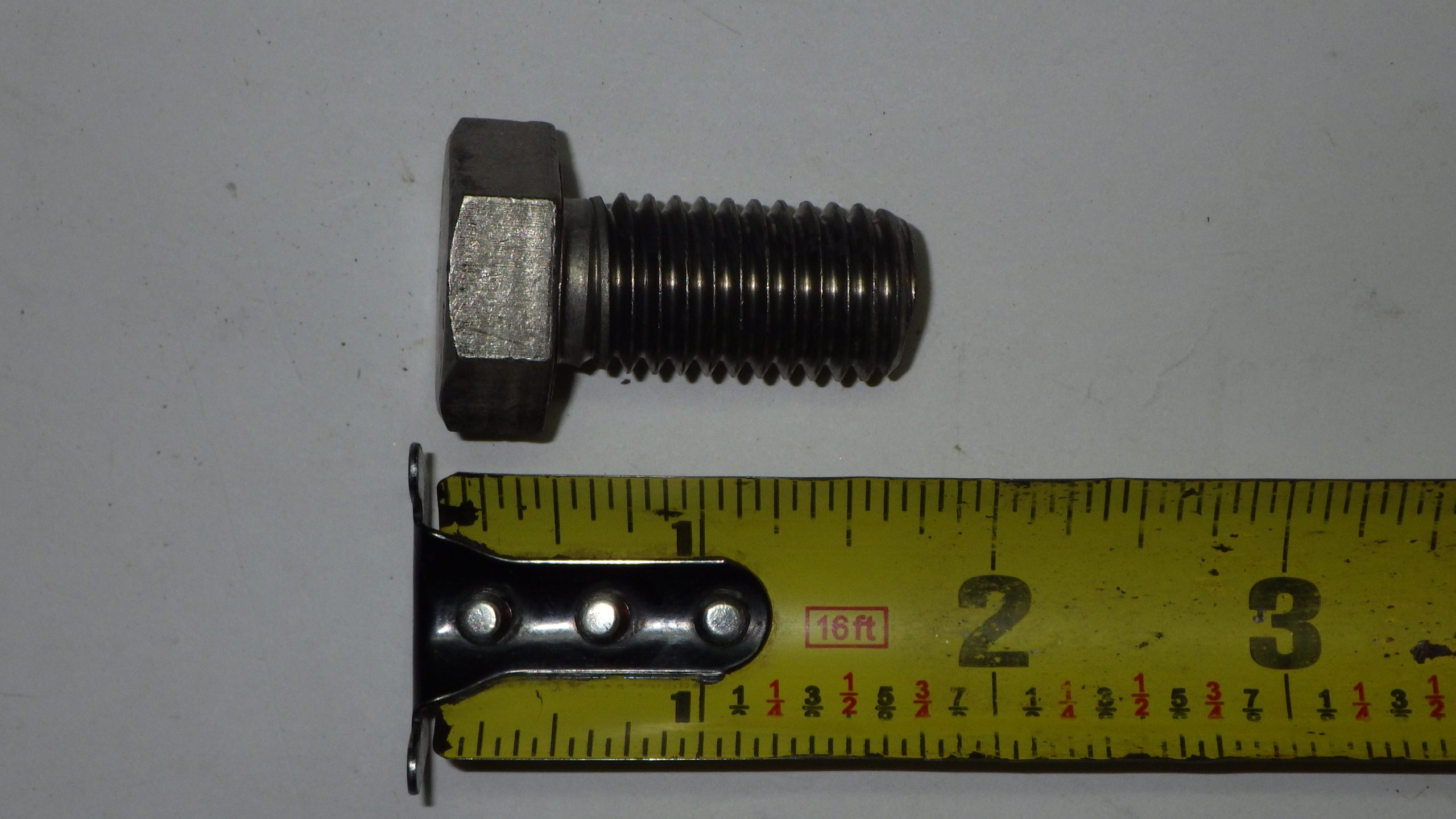

SCREW
PN MS35311-60
NSN 5305-00-226-9202

MFG GRANDEUR FASTENERS INC
NEW GOV SURPLUS
SUPPLIER CAGE 03EF7

ITEM NAME: SCREW,CAP,HEXAGON H

DEFINITION: AN EXTERNALLY THREADED FASTENER DESIGNED FOR INSERTION INTO HOLES IN ASSEMBLED PARTS, FOR MATING WITH A PREFORMED INTERNAL THREAD AND FOR TIGHTENING OR RELEASING BY TORQUING THE HEAD. THE THREADED AND UNTHREADED PORTIONS ARE BOTH OF THE SAME NOMINAL DIAMETER OF 0.190 INCH (5 MM) OR LARGER. HEAD DIMENSIONS AND SIZES OF THREADED AND UNTHREADED PORTIONS SHALL CONFORM TO INTERNATIONALLY RECOGNIZED FASTENER STANDARDS. THE THREAD LENGTH BEING THE CONTROLLED DIMENSION, THE GRIP LENGTH IS NOT SPECIFIED. A LOCKING FEATURE MAY BE INCORPORATED IN THE DESIGN OF THE HEAD OR THREADS. THE HEAD IS NOT DESIGNED TO BE HELD OR DRIVEN WITH AN INSERTED DRIVER OR BY THE THUMB AND FINGERS. EXCLUDES:BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; AND SCREW,CAP,SOCKET HEAD.
