FUSE CARTRIDGE P/N F03A250V15AS

NSN Number : 5920 00 243 3788 Category :

$10.00

Part Number: 5920 00 243 3788

Manufacturer: MILITARY STANDARDS

Manufacturer's Product Number: 5920 00 243 3788

Condition: New

116 in stock

$10.00 for a lot of 10ea. = $1.00ea.

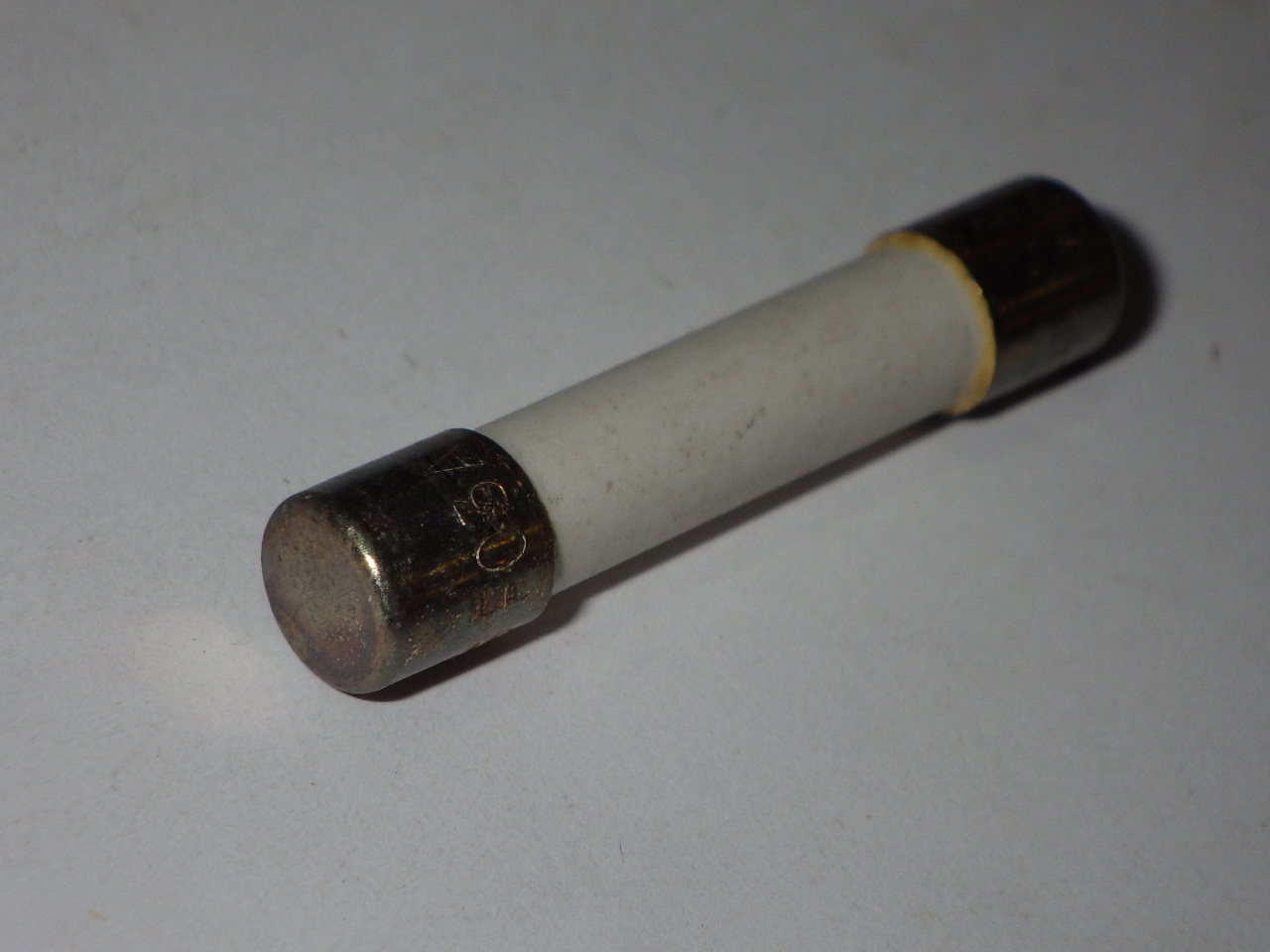

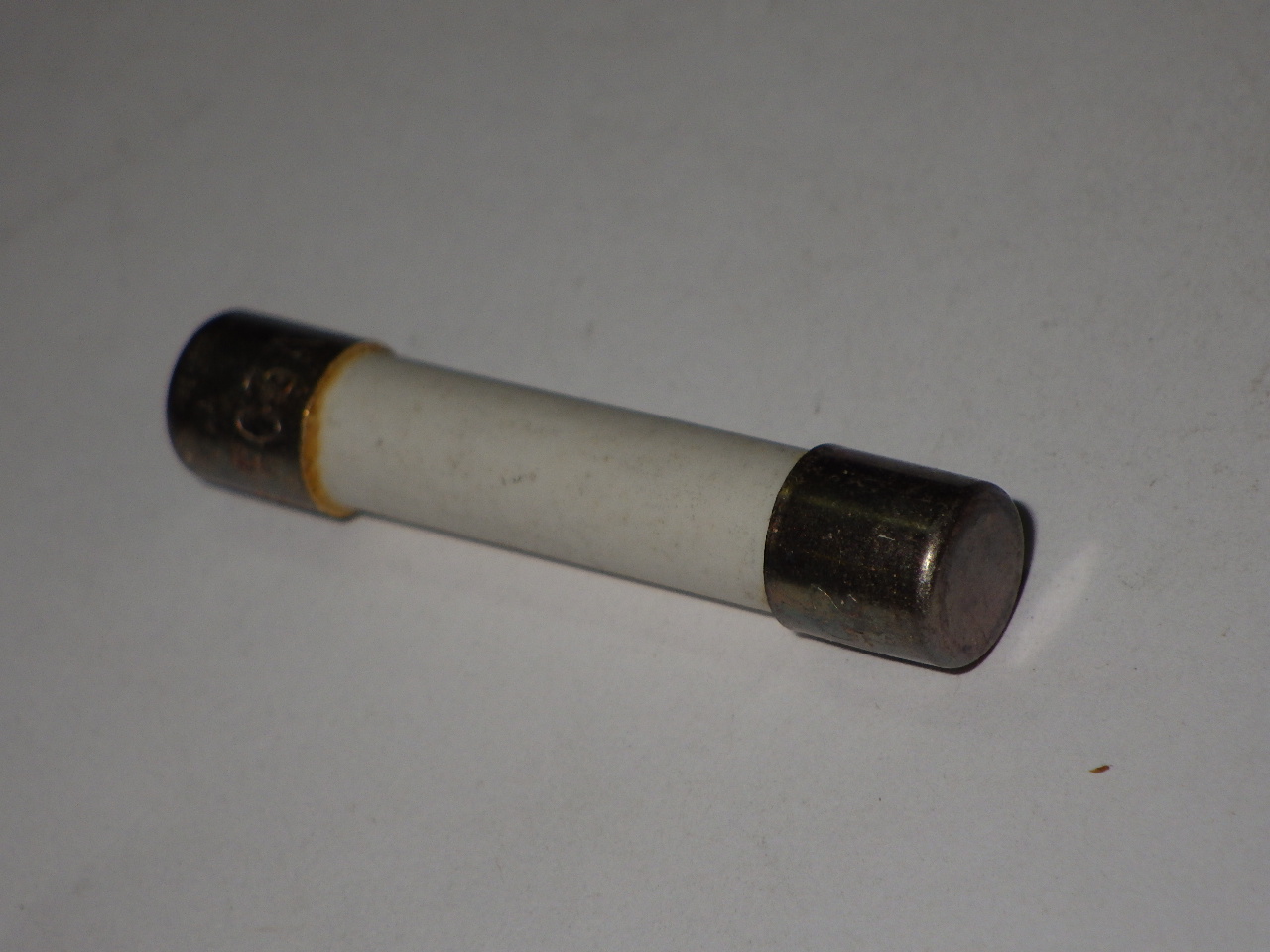

FUSE CARTRIDGE
P/N F03A250V15AS
P/N MS90079-7
P/N 1071A001
P/N 13214E3299-11
NSN 5920 00 243 3788
MFG MILITARY STANDARDS

NEW GOV SURPLUS
SUPPLIER CAGE CODE 03EF7

ITEM NAME FUSE,CARTRIDGE
DEFINITION A fuse in which the element is enclosed in a cylindrical body. The
element may be renewable. The terminals may be of varying types. It
may contain a visual indication that the fusible element is severed,
and may also provide an audible alarm through auxiliary circuitry.


CHARACTERISTIC VALUE
BODY STYLE TUBE TYPE
III TERMINAL MATERIAL BRASS OR COPPER
TERMINAL SURFACE TREATMENT SILVER PLATED

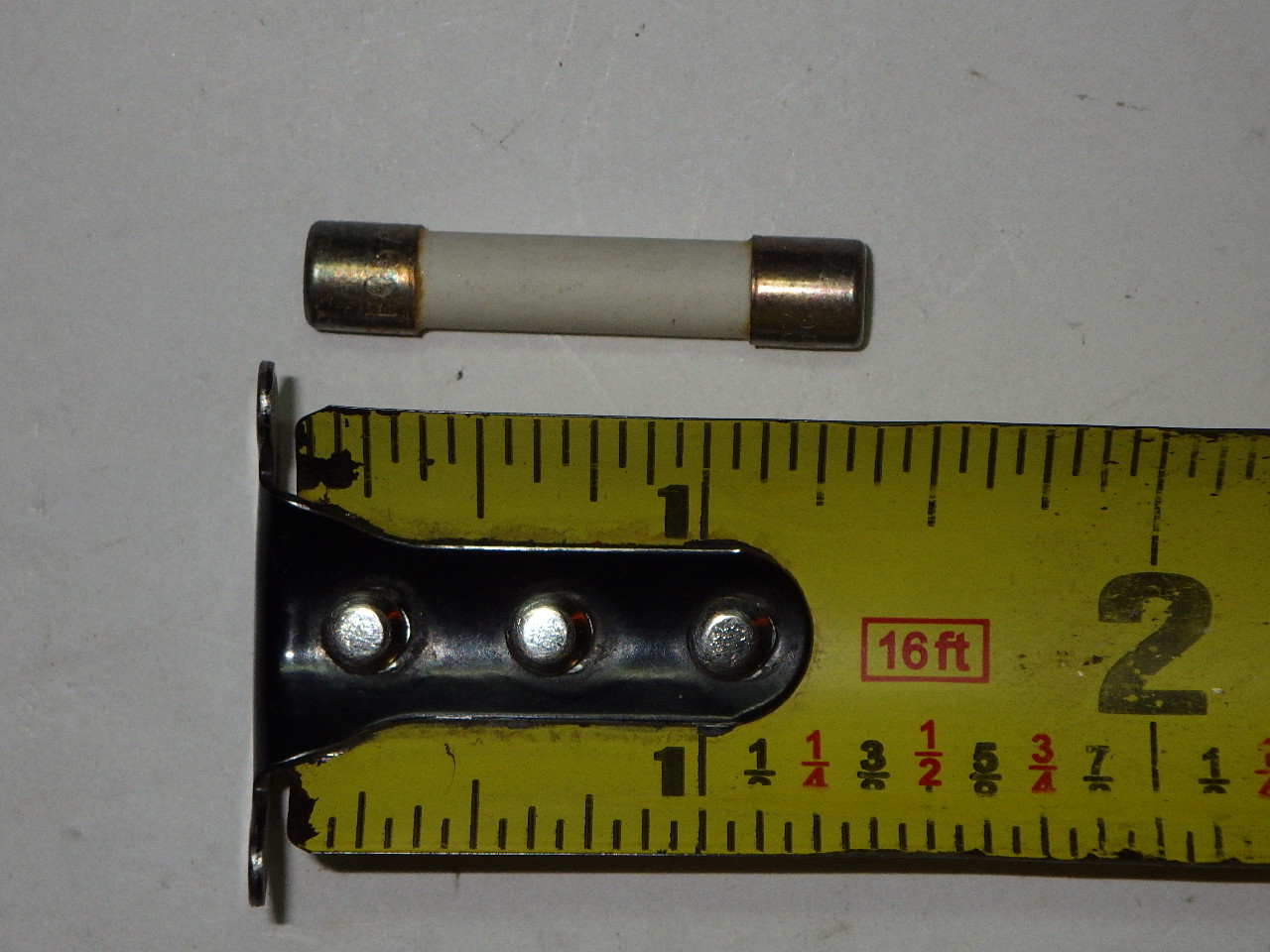

OVERALL LENGTH 1.250 INCHES NOMINAL
OVERALL DIAMETER 0.250 INCHES NOMINAL
III CASE MATERIAL PLASTIC OR CERAMIC
CONTINUOUS CURRENT RATING 15.000
IN AMPS
MAXIMUM VOLTAGE RATING IN 250.0 AC AND 250.0 DC
VOLTS
CIRCUIT OVER-CURRENT NORMAL INSTANTANEOUS
INTERRUPTION TYPE
INTERRUPTION INDICATOR OPAQUE BODY
METHOD
FEATURES PROVIDED NONRENEWABLE FUSIBLE ELEMENT
SHORT-CIRCUIT/INTERRUPT 10000.0
CURRENT RATING IN AMPS
III PRECIOUS MATERIAL AND TERMINAL SURFACE SILVER
LOCATION
III PRECIOUS MATERIAL SILVER
DEFINITIVE GOVERNMENT F03A250V15AS
SPEC/STD REFERENCE
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT MIL-PRF-15160/3
SPEC/STD REFERENCE
SPEC/STD CONTROLLING DATA 81349
MANUFACTURERS CODE
TEST DATA DOCUMENT 81349-MIL-F-15160 SPECIFICATION (INCLUDES
ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT
REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION
FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY
DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS,
REFLECTING GENERAL TYPE DATA ON CERTAIN
ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND
TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL",
"AVERAGE", "NOMINAL", ETC.).
SPECIFICATION/STANDARD DATA 81349-MIL-F-15160/3 GOVERNMENT SPECIFICATION
