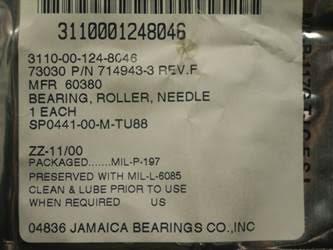

BEARING ROLLER
PN 714943-3
P/N J-57
P/N SCE57
P/N 10107336
P/N 137-012-9005
NSN 3110 00 124 8045
MFG JAMAICA BEARINGS

NEW GOV SURPLUS
SUPPLIER CAGE CODE 03EF7

ITEM NAME  BEARING,ROLLER,NEED
DEFINITION  A single or multiple-row antifriction bearing used with or without
             inner or outer races characterized by relatively small size rollers
             usually not ranging above 0.250 inch (6.35mm) diameter and generally
             longer in length in relation to diameter.


CHARACTERISTIC                          VALUE
OVERALL WIDTH                           0.4270 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM
BORE DIAMETER                           0.3115 INCHES MINIMUM AND 0.3120 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER                0.4990 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM
SURFACE FINISH                          GROUND
RETAINER FABRICATION METHOD             PRESSED
ALIGNMENT TYPE                          RIGID
SPECIAL FEATURES                        NONE PIECE STEEL RETAINER
MATERIAL                                STEEL OVERALL
MFR SOURCE CONTROLLING                  714943
REFERENCE
SPEC/STD CONTROLLING DATA               73030
MANUFACTURERS CODE
STYLE DESIGNATOR                        NON-SEPARABLE, CLOSED END, DRAWN SHELL
