ADAPTER

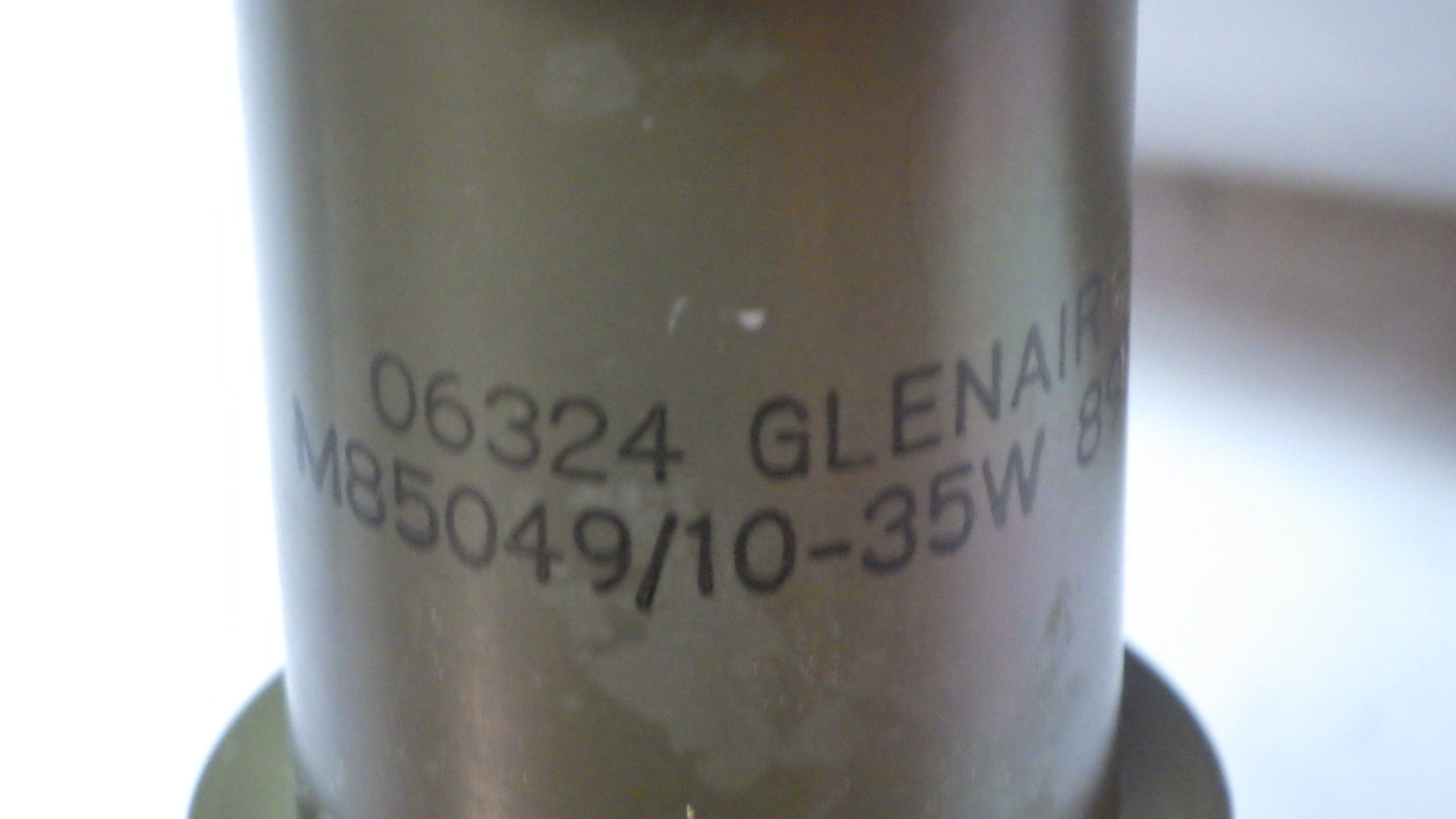

P/N M85049/10-35W
P/N MIL-C-85049/10
NSN 5935 01 169 1694
MFG MILITARY SPECIFICATIONS

NEW GOV SURPLUS
SUPPLIER CAGE CODE 03EF7

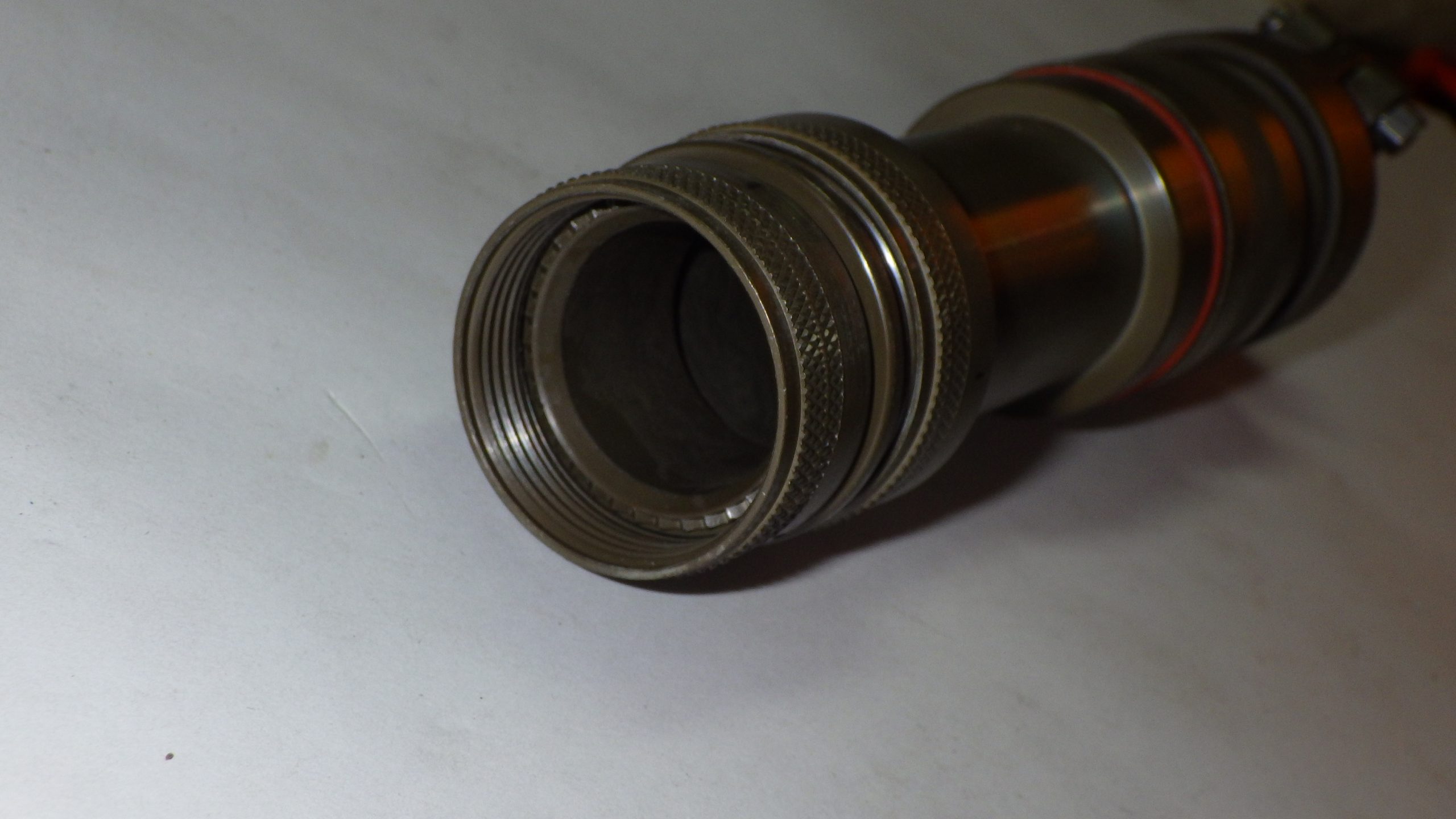

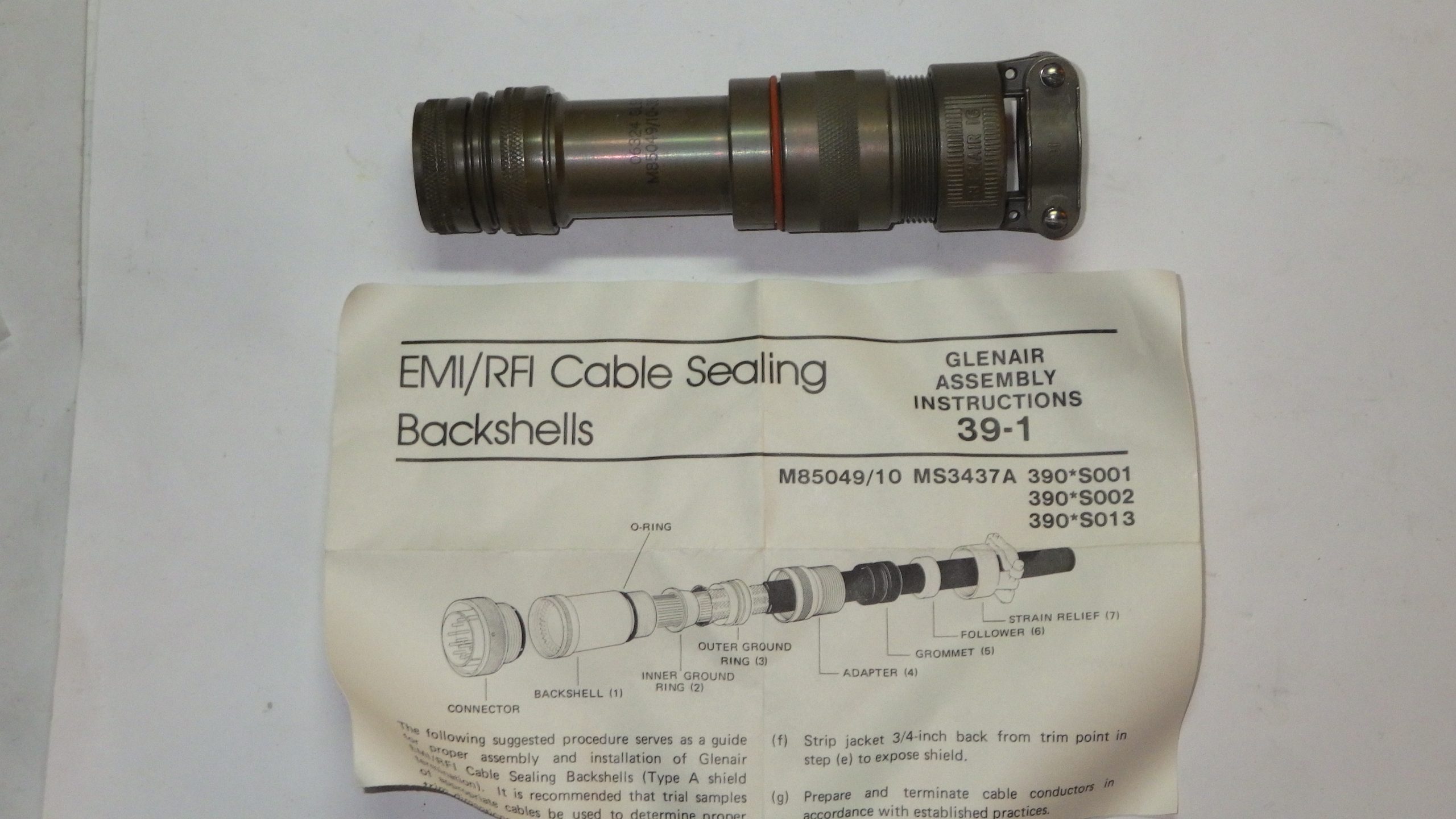

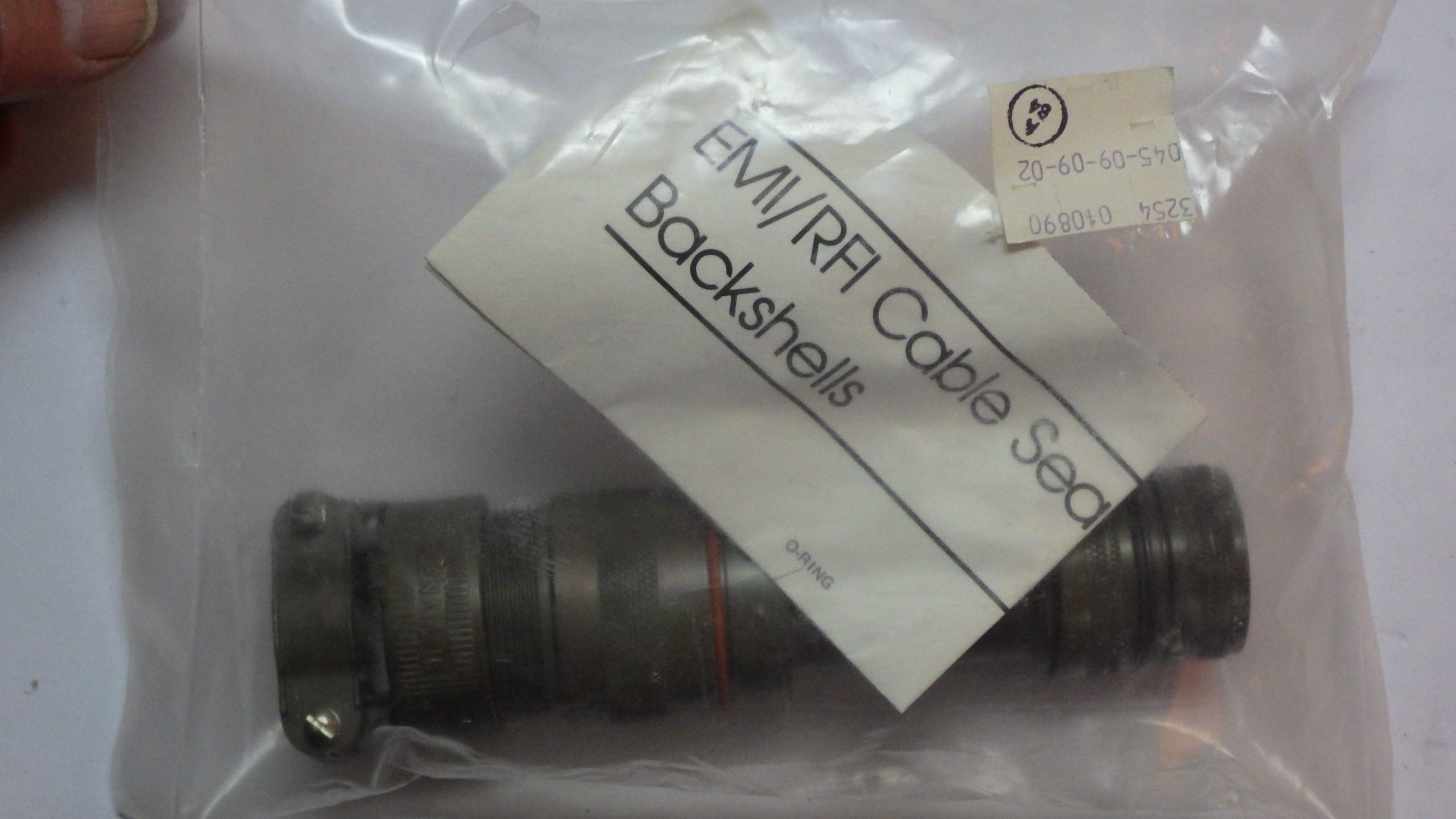

ITEM NAME   BACKSHELL,ELECTRICA
DEFINITION  An item specifically designed to be placed around that portion of a
            CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which
             contains the facilities for attaching wires or cables.  It may be
             designed to provide the necessary accomodations between an electrical
             cable clamping device and an electrical connector shell, or it may
             include the clamping device.  It may be used for shielding against
             electrical interference, mechanical injury, or physical damage due to
             environmental conditions.


CHARACTERISTIC                          VALUE
THREAD CLASS                            2B AND 2A
THREAD DIRECTION                        RIGHT-HAND AND RIGHT-HAND
SEAL MATERIAL                           RUBBER, SILICONE BASE AND RUBBER, SILICONE BASE

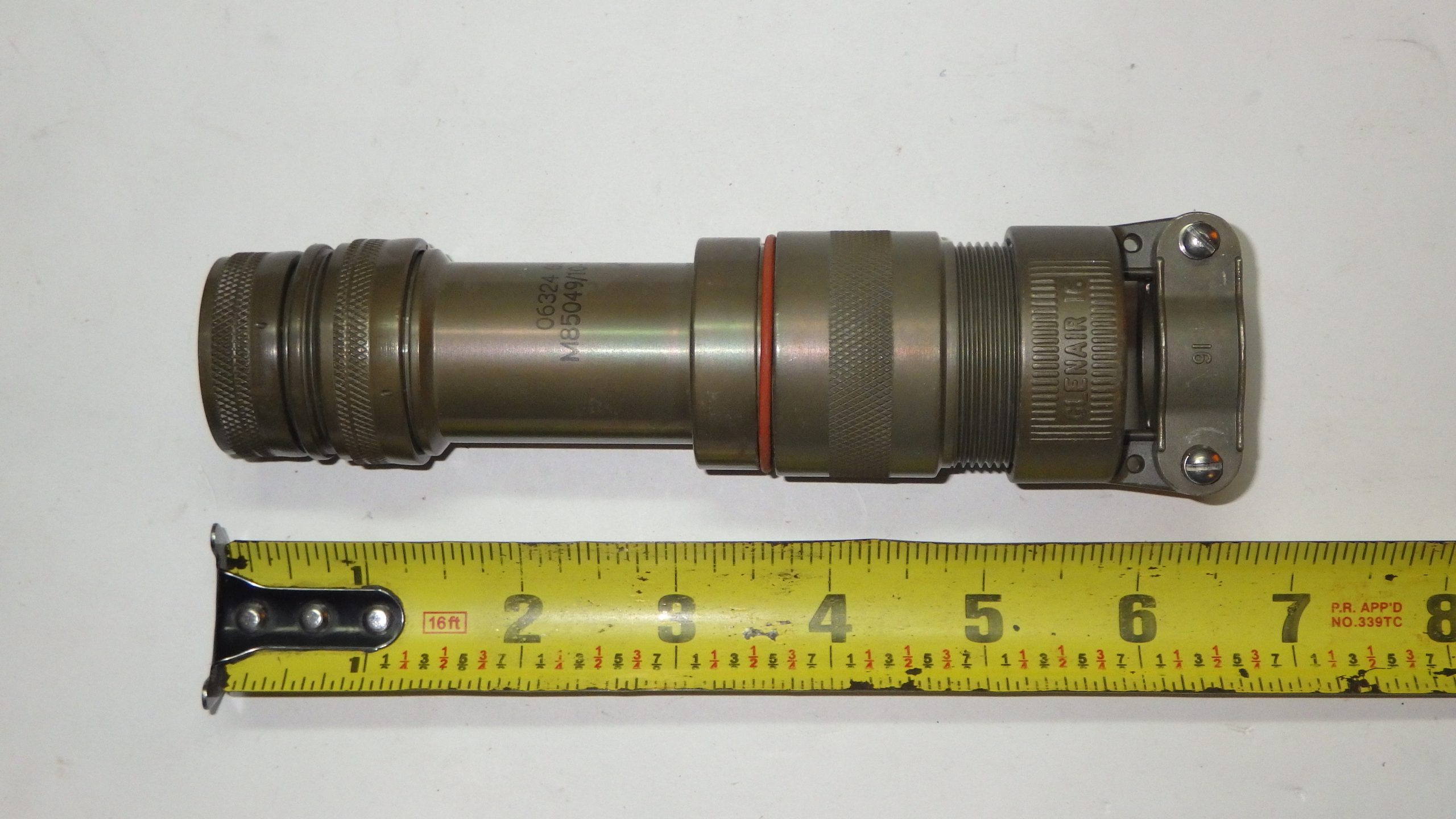

OVERALL LENGTH                          5.975 INCHES MINIMUM AND 6.117 INCHES MAXIMUM
OVERALL WIDTH                           1.750 INCHES NOMINAL
CABLE OPENING DIAMETER                  0.625 INCHES MINIMUM AND 0.937 INCHES MAXIMUM
CABLE OPENING QUANTITY                  1
SEAL TYPE                               GROMMET AND PREFORMED PACKING
SIZE DESIGNATION                        20 AND 37
MOUNTING FACILITY TYPE AND              1 THREADED COUPLING AND 1 THREADED COUPLING
QUANTITY
NOMINAL THREAD SIZE                     1.188 INCHES AND 1.000 INCHES
MATERIAL                                ALUMINUM ALLOY
SURFACE TREATMENT                       CADMIUM
DEFINITIVE GOVERNMENT                   M85049/10-35W
SPEC/STD REFERENCE
MANUFACTURERS CODE                      81349
NON-DEFINITIVE GOVERNMENT               MIL-C-85049/10
SPEC/STD REFERENCE
SPEC/STD CONTROLLING DATA               81349
MANUFACTURERS CODE

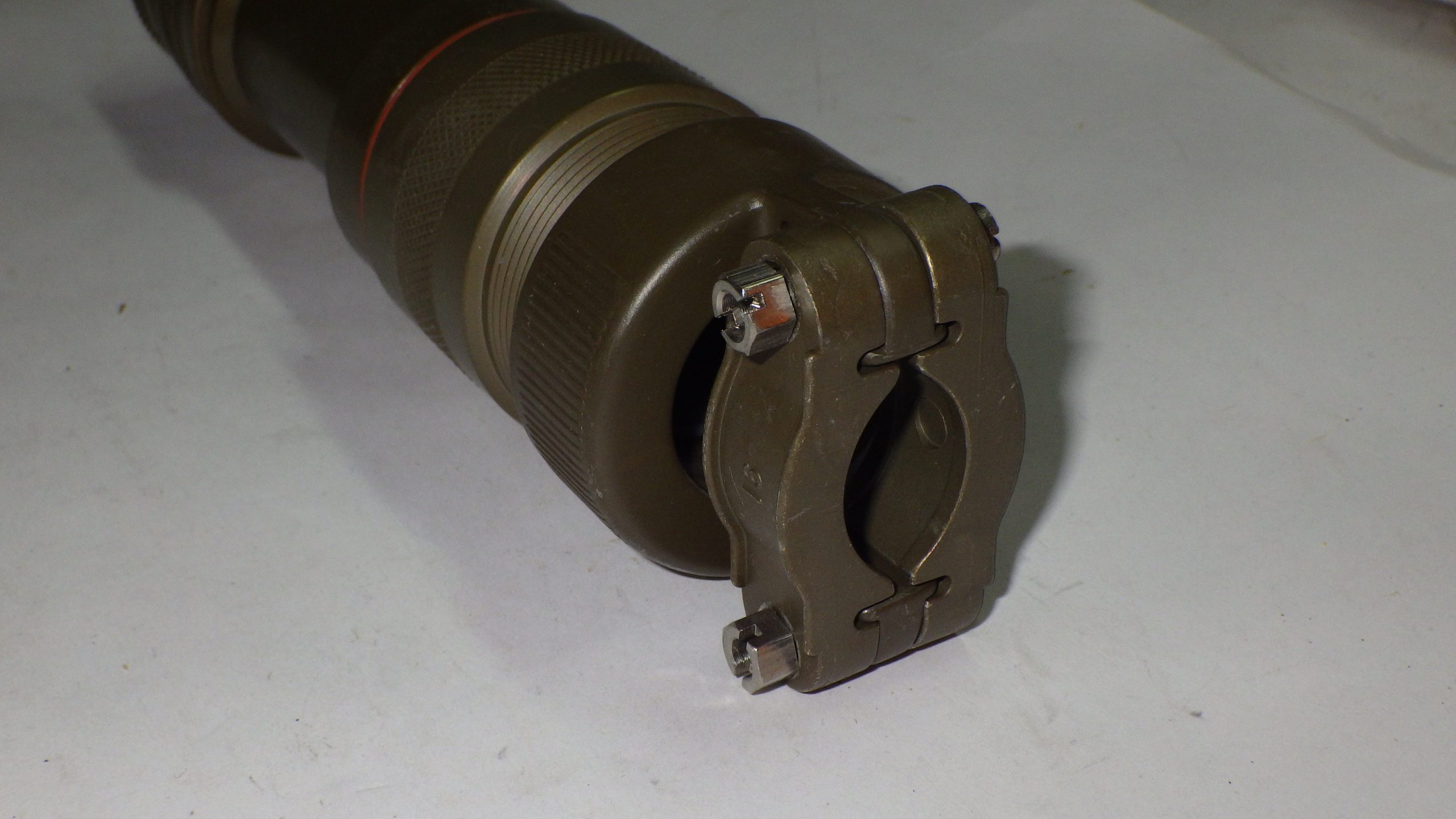

STYLE DESIGNATOR                        STRAIGHT TYPE W/CABLE CLAMP
TEST DATA DOCUMENT                      81349-MIL-C-85049 SPECIFICATION (INCLUDES
                                        ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT
                                        REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION
                                        FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY
                                        DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS,
                                        REFLECTING GENERAL TYPE DATA ON CERTAIN
                                        ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND
                                        TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL",
                                        "AVERAGE", "NOMINAL", ETC.).
THREAD SERIES DESIGNATOR                UNEF AND UNEF
SPECIFICATION/STANDARD DATA             81349-MIL-C-85049/10 GOVERNMENT SPECIFICATION
