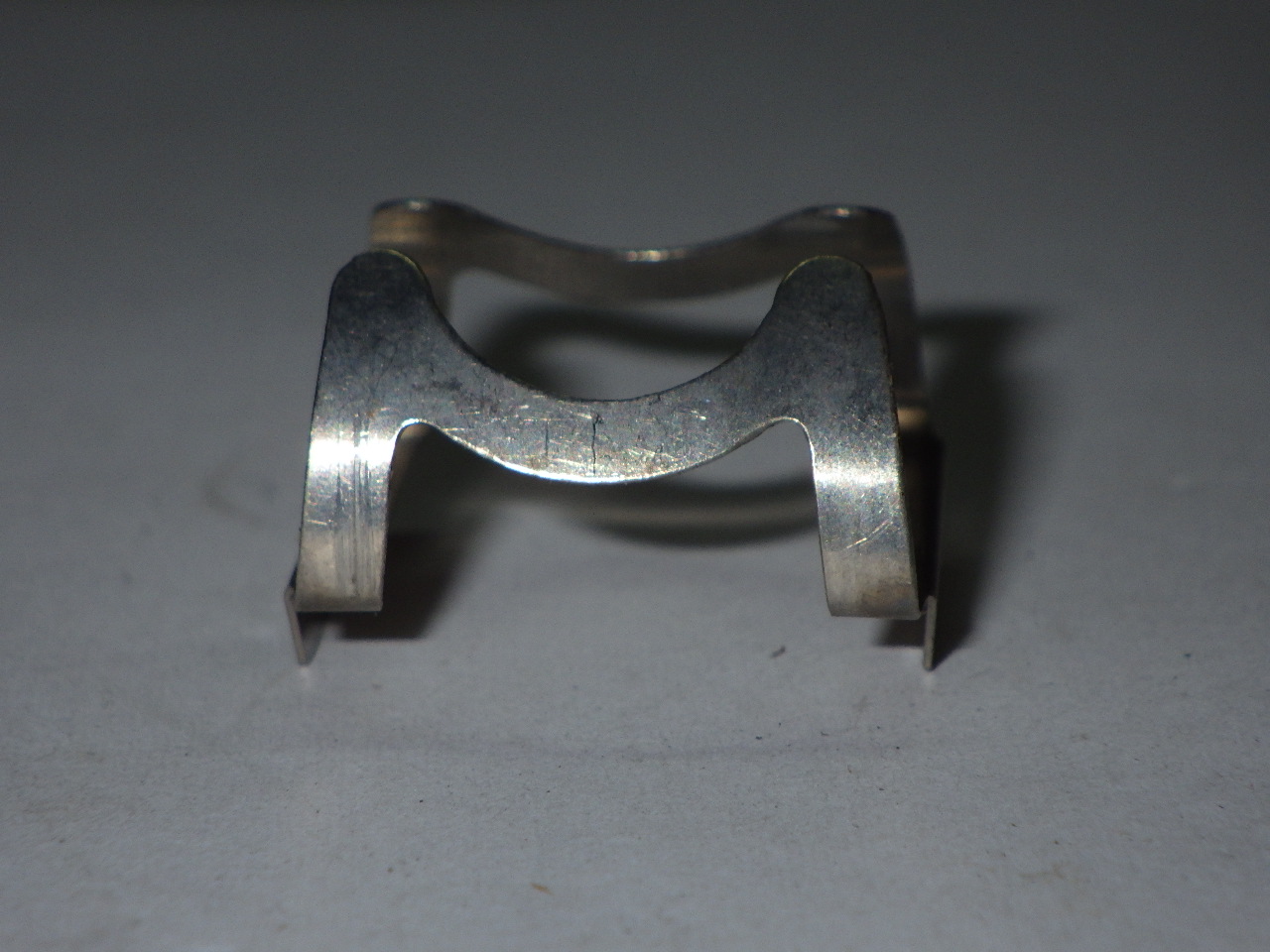

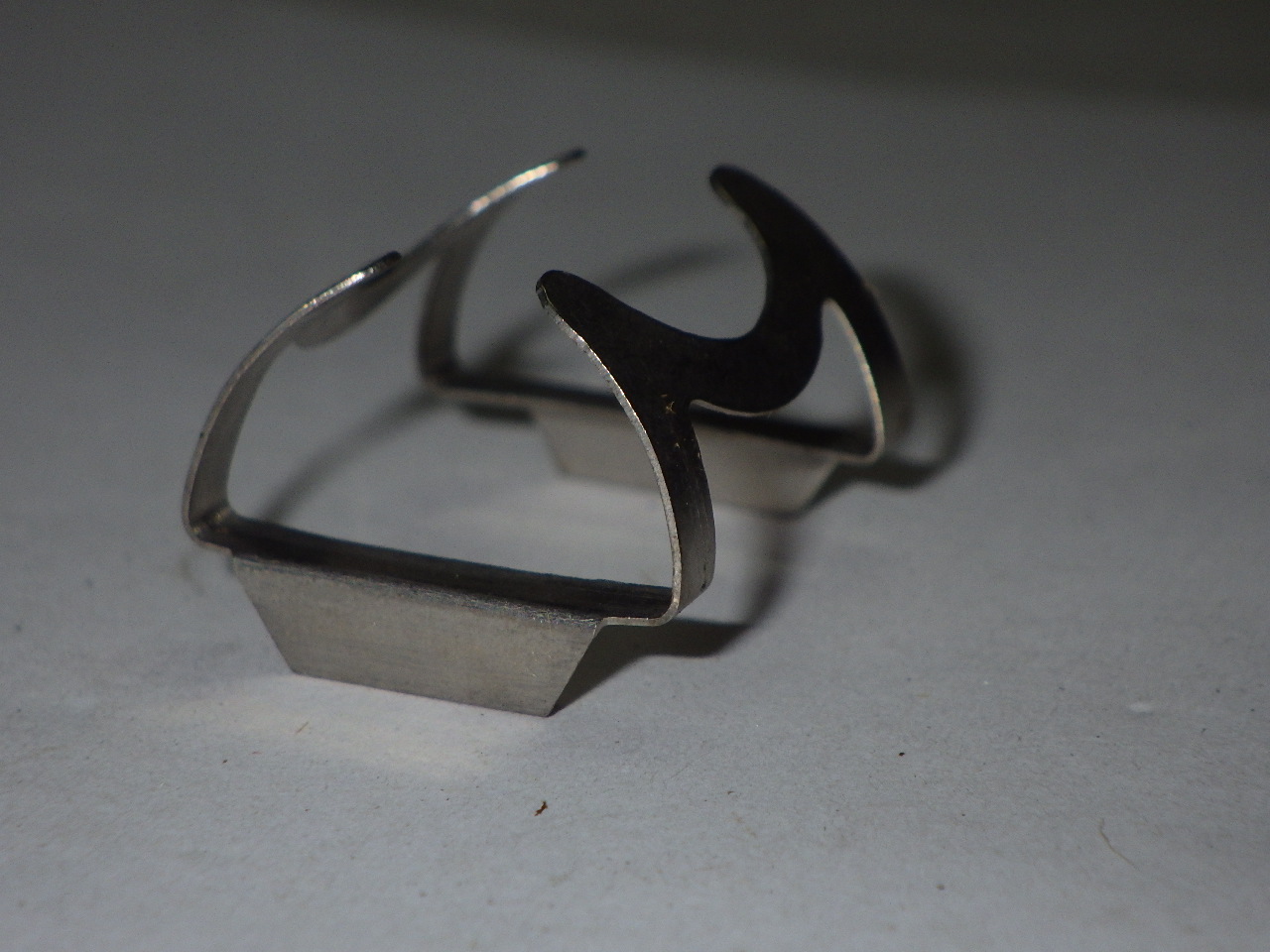

NUT RETAINER
P/N 10695B6RET
NSN 5340-00-364-9751
MFG CASCADE PACIFIC INTERNATIONAL
NEW GOV SURPLUS
SUPPLIER CAGE 03EF7

ITEM NAME: RETAINER,NUT AND BO
DEFINITION: An item designed to fit over and hold a nut or bolt head to prevent it
from turning. See also LOCKING PLATE, NUT AND BOLT.

CHARACTERISTIC VALUE

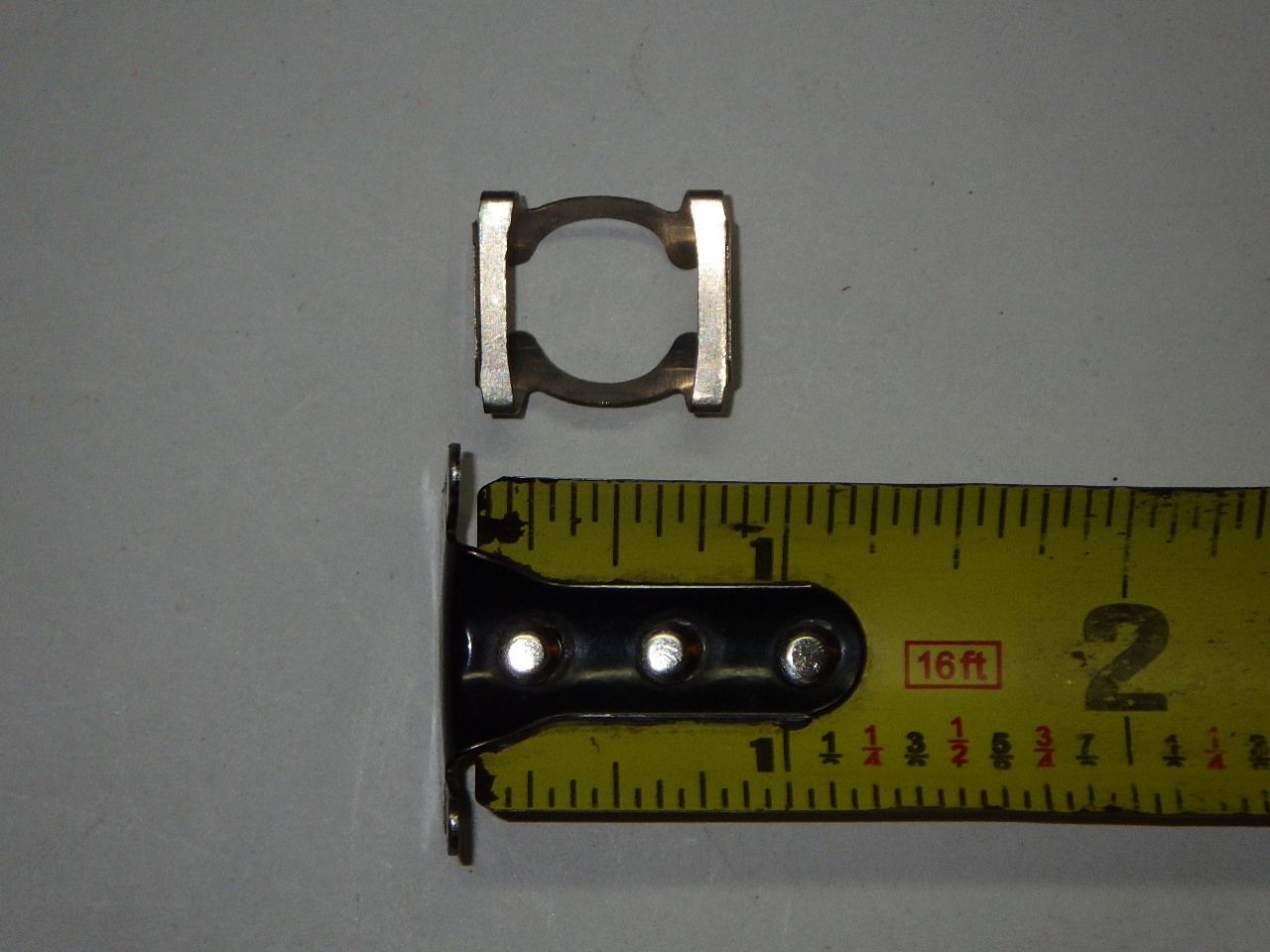

OVERALL LENGTH 0.768 INCHES MAXIMUM
OVERALL HEIGHT 0.406 INCHES MINIMUM AND 0.446 INCHES MAXIMUM
OVERALL WIDTH 0.707 INCHES MAXIMUM
MATERIAL THICKNESS 0.009 INCHES MINIMUM AND 0.015 INCHES MAXIMUM
GRIP HEIGHT 0.137 INCHES NOMINAL
MATERIAL IRON ALLOY 660
MATERIAL DOCUMENT AND AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE
CLASSIFICATION
SURFACE TREATMENT PASSIVATE
SURFACE TREATMENT DOCUMENT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE
AND CLASSIFICATION
STYLE DESIGNATOR BARREL
