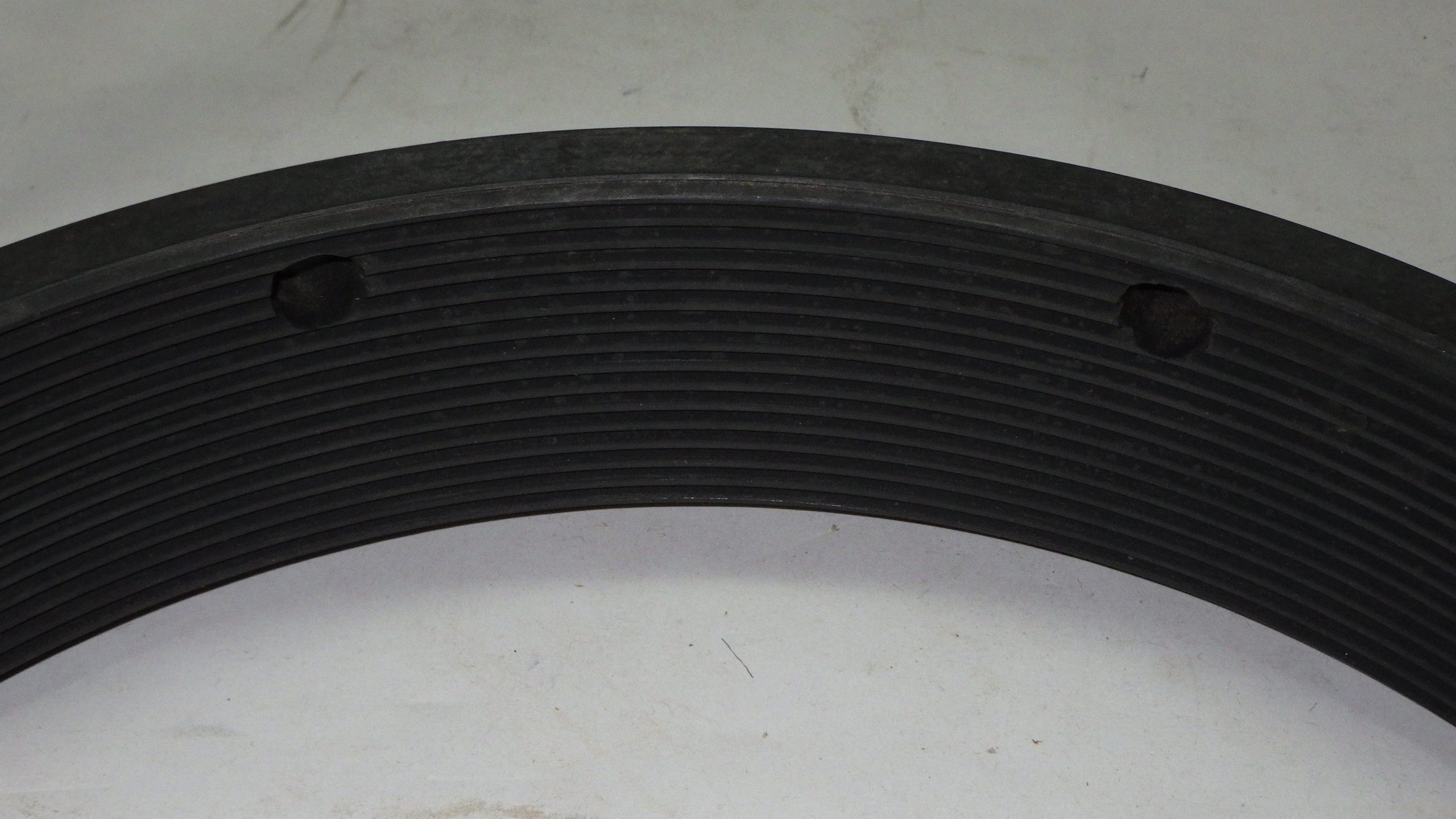

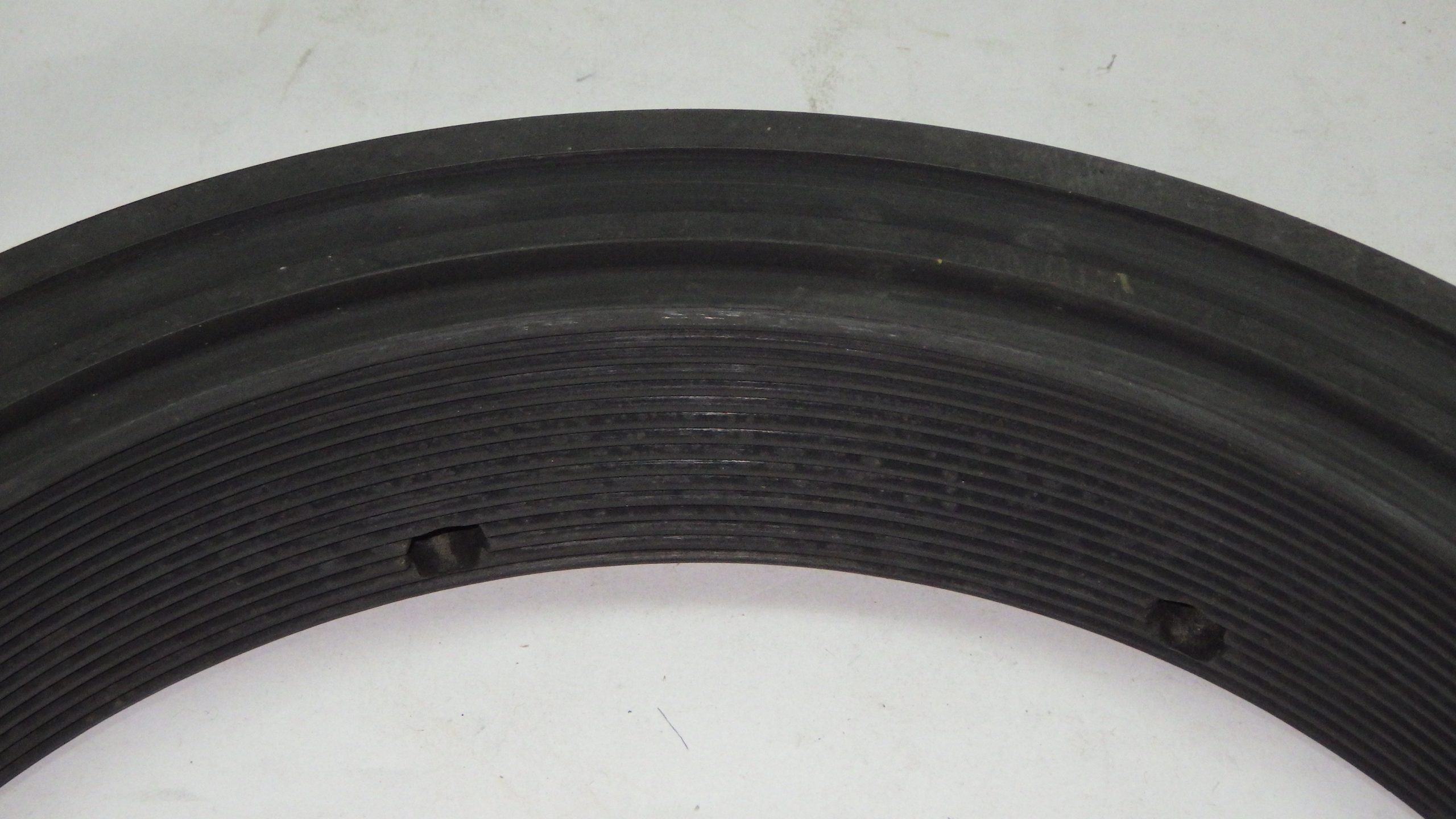

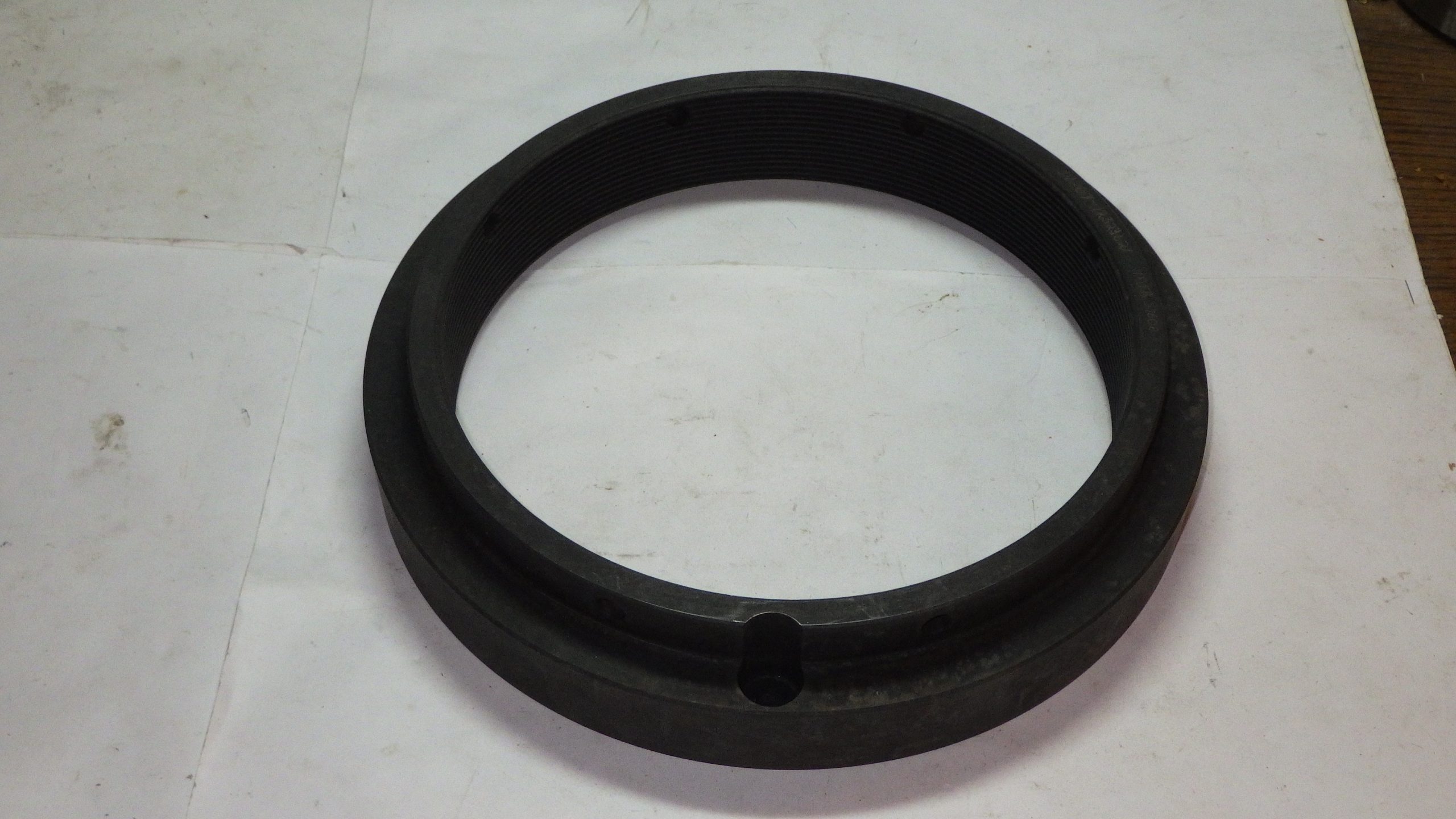

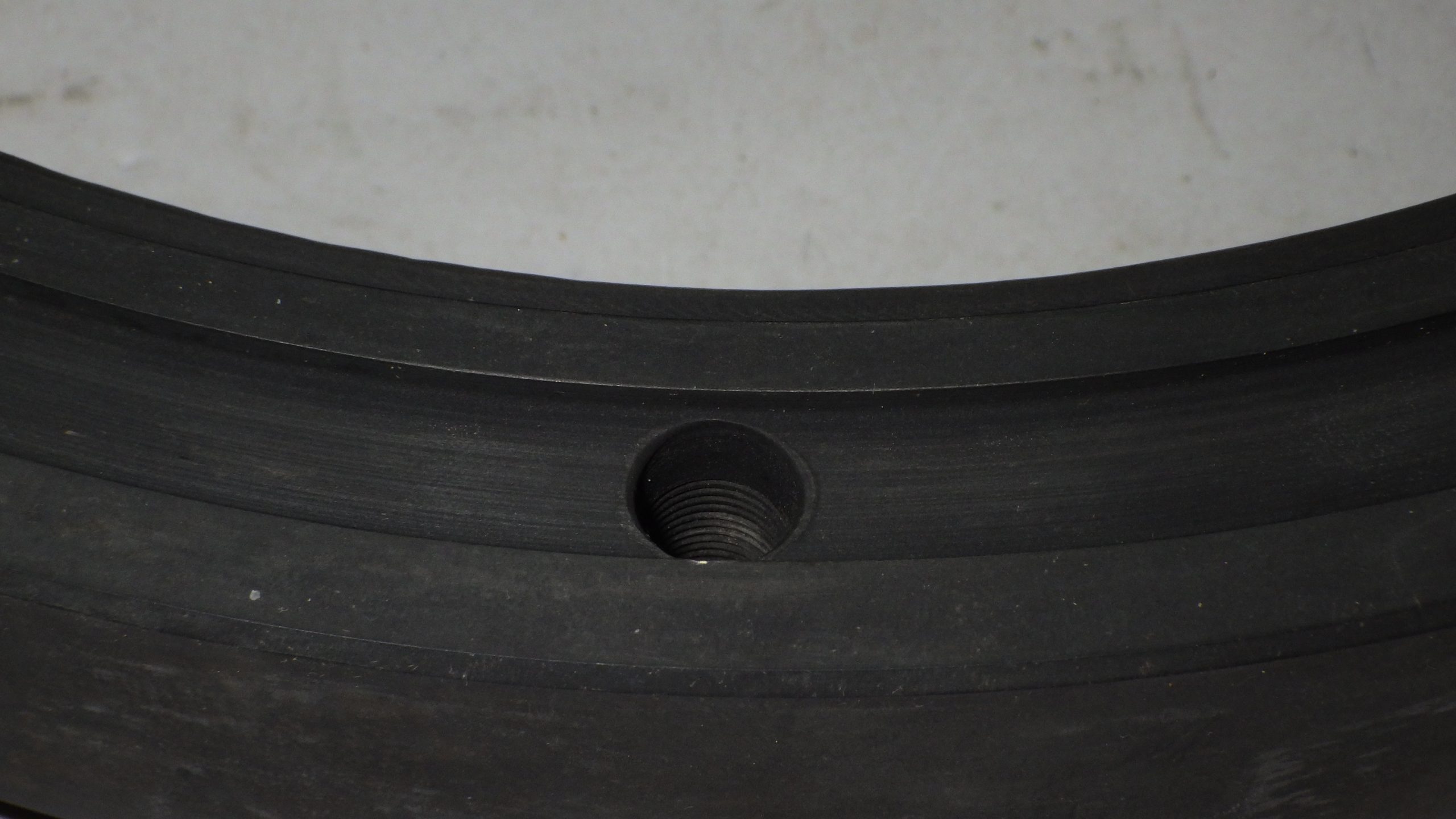

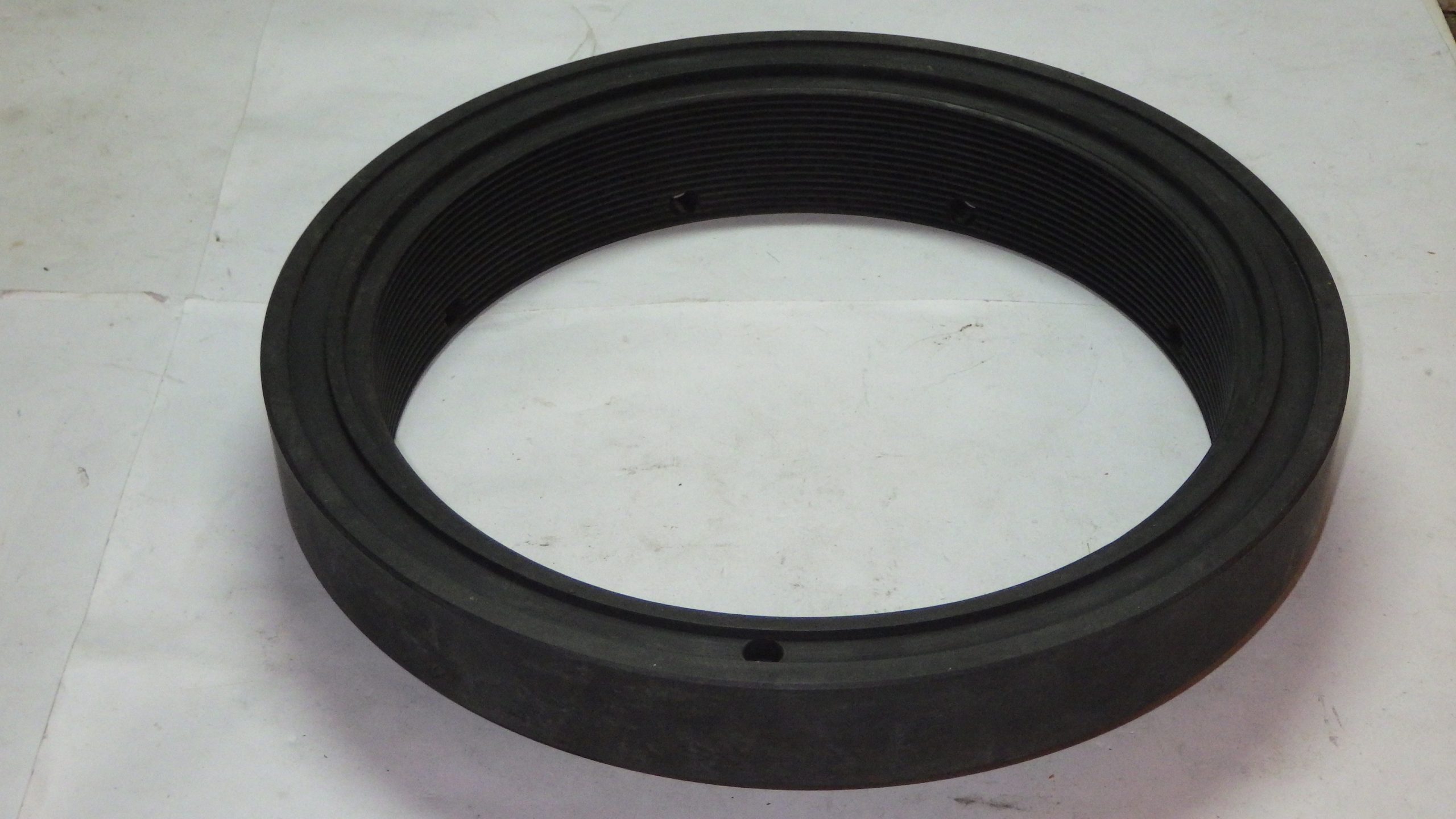

NUT
PN 12323621
NSN 5310 01 179 3756
MFG US ARMY

NEW GOV SURPLUS
SUPPLIER CAGE CODE 03EF7

ITEM NAME:   NUT,PLAIN,ROUND
DEFINITION:  A nut, circular in shape, which may have wrenching facilities such as
             flats, holes, protrusions, slots or splines in or on the periphery or
             in the face opposite the bearing surface. For items having a thickness
             (or height) exceeding two times the outside diameter, use POST,
             ELECTRICAL-MECHANICAL EQUIPMENT. See also NUT (1), PLAIN, KNURLED.
             (When height or thickness and/or outside diameter is designated as a
             tolerance dimension, the maximum dimension will be used to determine
             compliance.)


CHARACTERISTIC                          VALUE
THREAD DIRECTION                        RIGHT-HAND
NUT STYLE                               ROUND

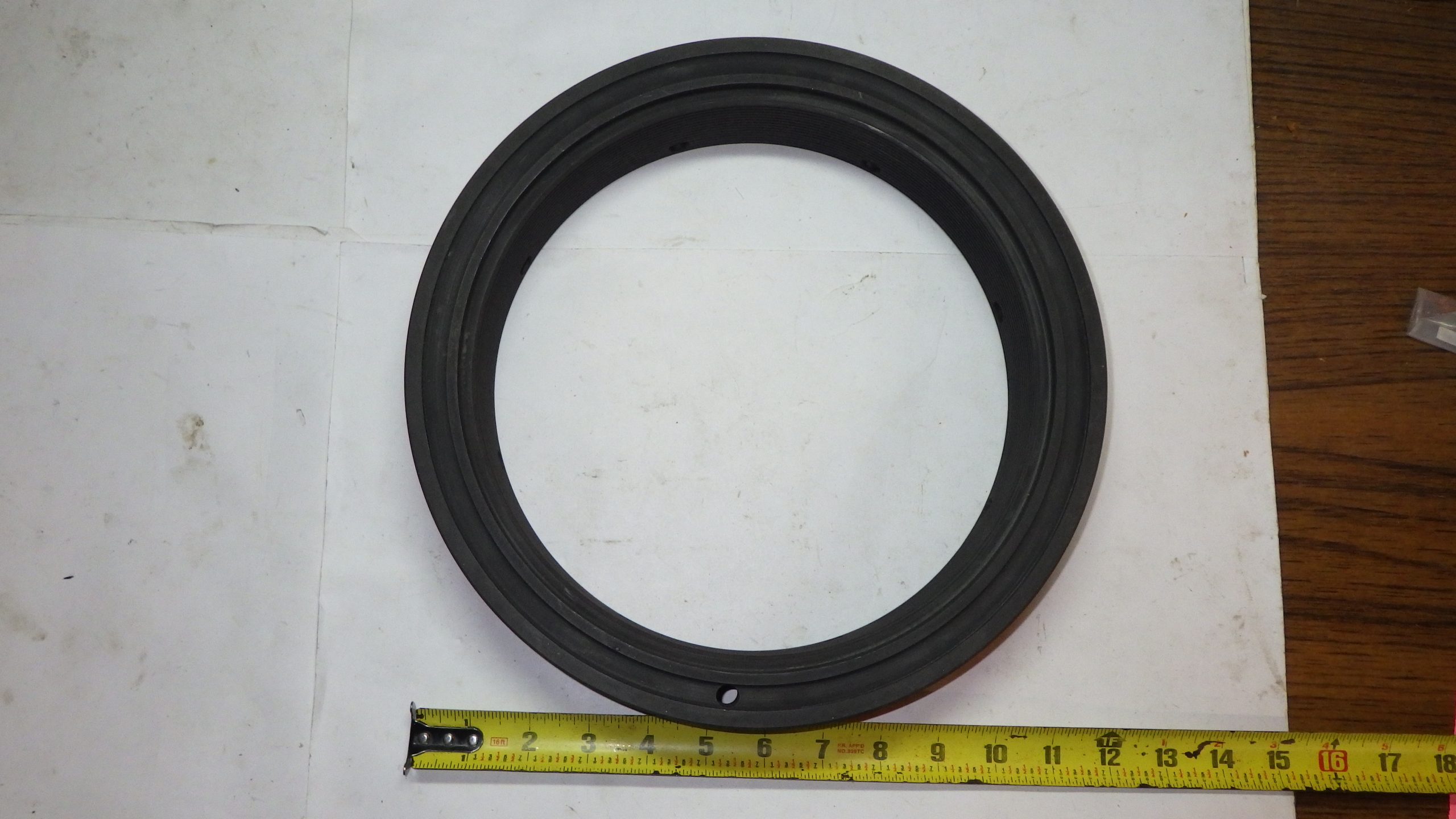

NUT DIAMETER                            295.0 MILLIMETERS NOMINAL
NUT THICKNESS                           55.0 MILLIMETERS NOMINAL
DRIVE POINT QUANTITY                    1
THREAD SERIES                           M
HARDNESS RATING                         36.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C
                                        MAXIMUM
NOMINAL THREAD SIZE                     10.0 MILLIMETERS
THREAD PITCH IN MILLIMETERS             1.00
THREAD TOLERANCE CLASS                  6H INTERNAL
SPECIAL FEATURES                        TENSILE STRENGTH IS 150000.0 PSI MIN.
MATERIAL                                STEEL COMP 4340 OVERALL
MATERIAL DOCUMENT AND                   MIL-S-46172,COND. ANNEALED,GRADE B MIL SPEC SINGLE
CLASSIFICATION                          MATERIAL RESPONSE OVERALL
SURFACE TREATMENT                       PHOSPHATE OVERALL
DESIGN CONTROL REFERENCE                12323621
THE MANUFACTURERS DATA                  19207
MANUFACTURERS CODE
SURFACE TREATMENT DOCUMENT              MIL-P-16232,TYPE M,CLASS 2 MIL SPEC SINGLE
AND CLASSIFICATION                      TREATMENT RESPONSE OVERALL
