LIGHT INDICATOR

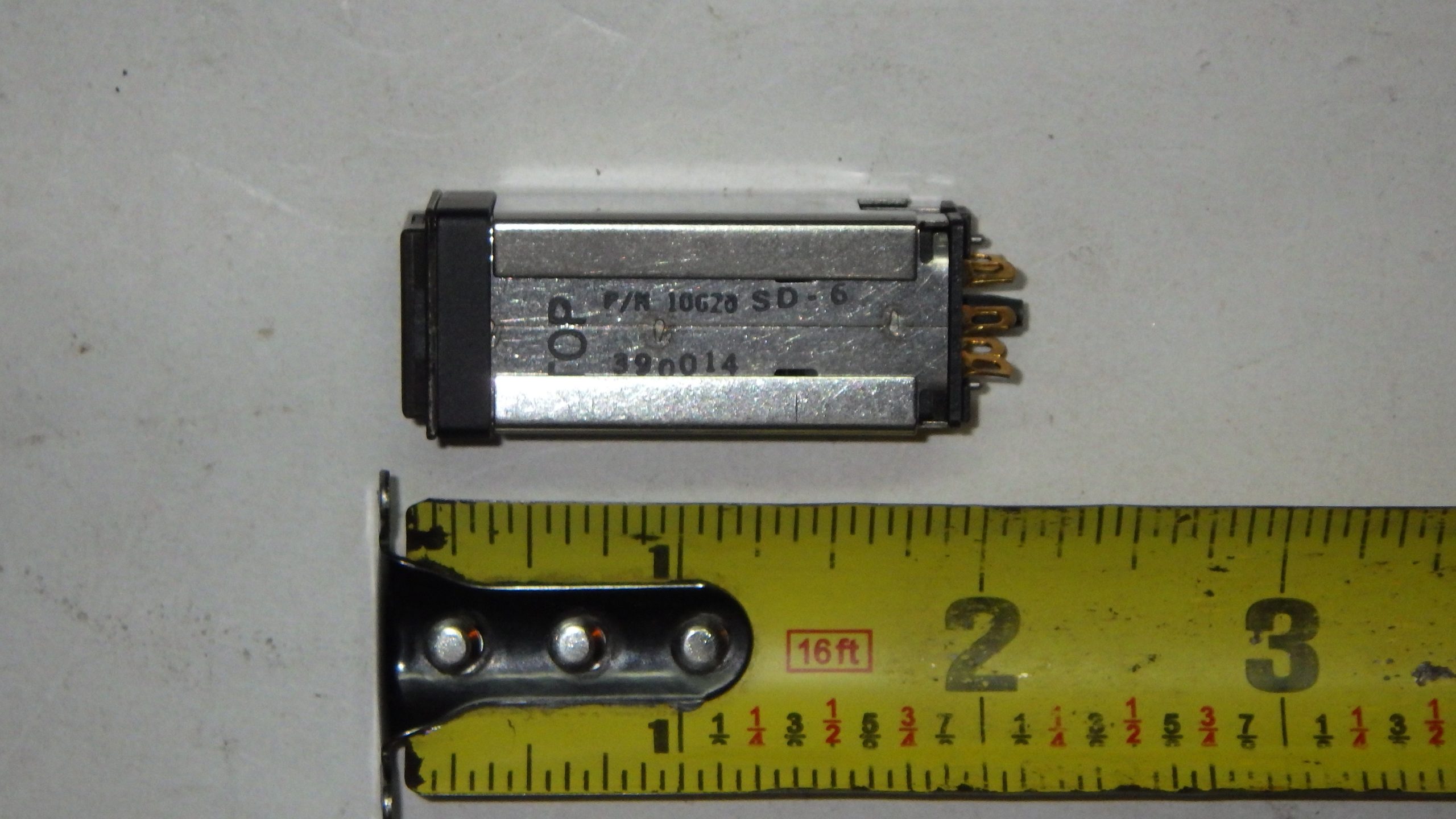

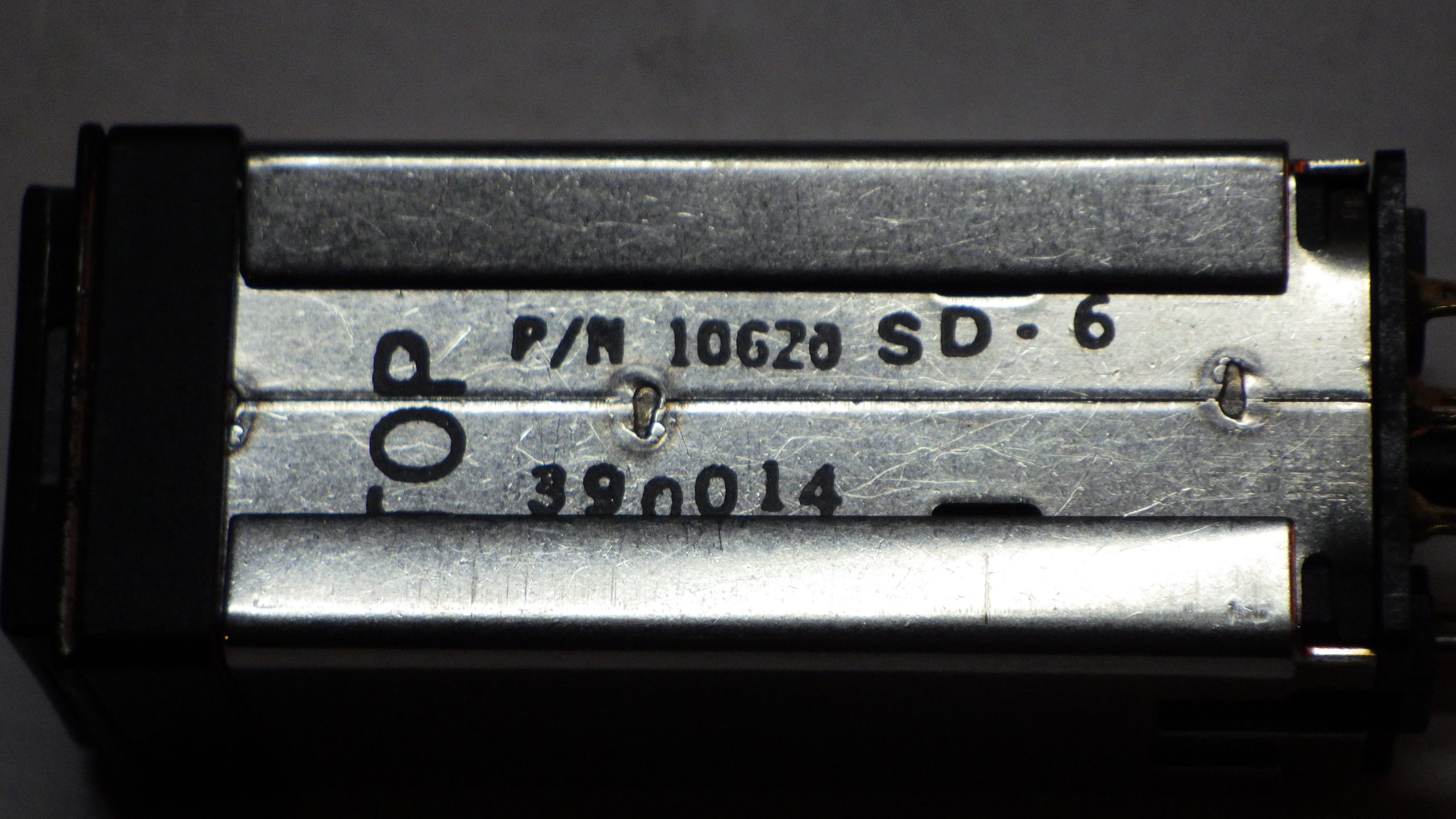

P/N 10620SD-6
P/N 390014

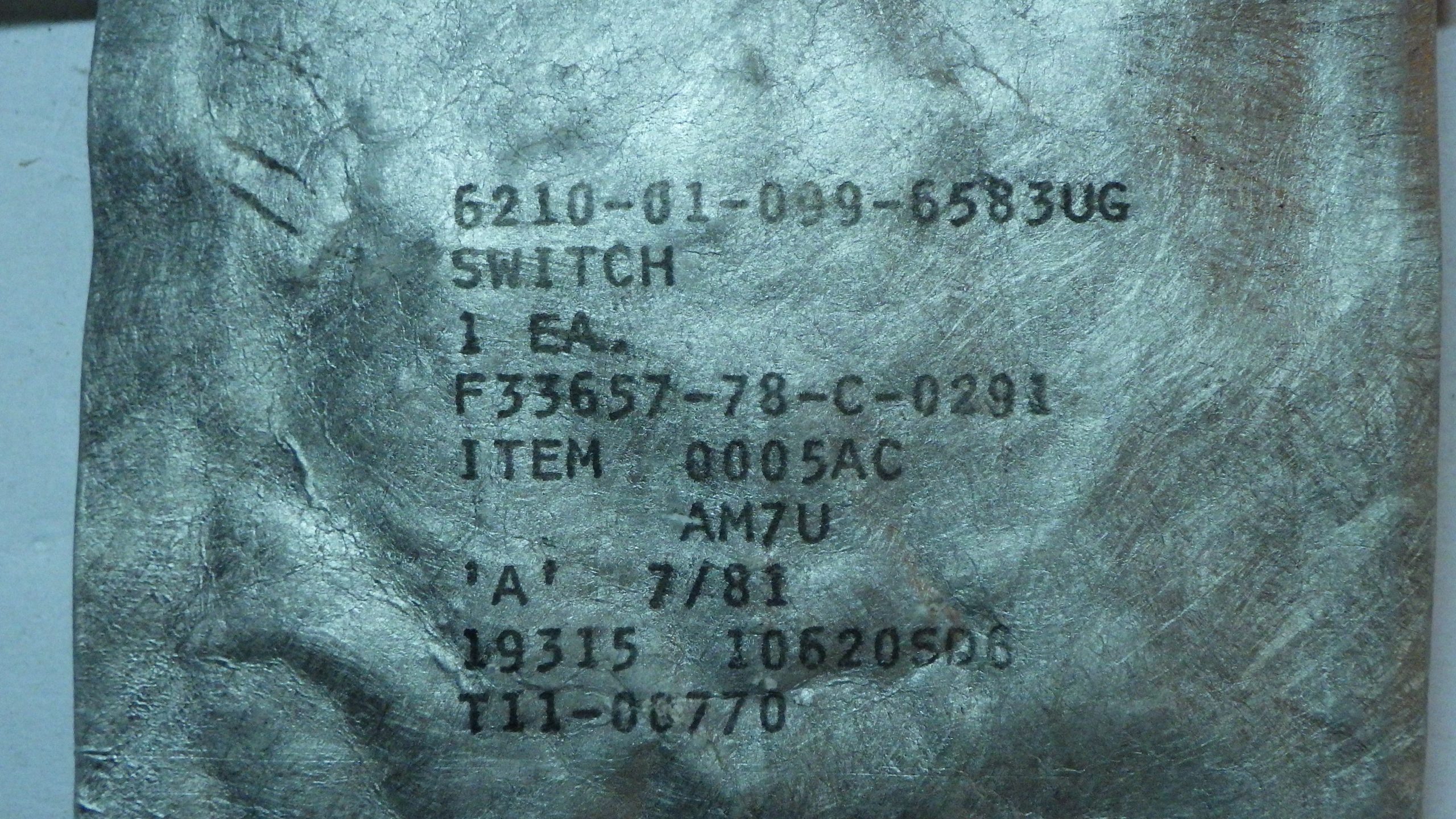

NSN 6210 01 099 6583
MFG CUCOMMUN TECH

NEW GOV SURPLUS
SUPPLIER CAGE CODE 03EF7

ITEM NAME   LIGHT,INDICATOR
DEFINITION  A light, with mounting facilities furnished, designed to convey
             information of a specific nature concerning the circuit in which
             inserted. Must include or provide for the use of a lens as a part of
             it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1),
             PANEL.


CHARACTERISTIC                          VALUE
OVERALL LENGTH                          1.970 INCHES MAXIMUM
OVERALL HEIGHT                          0.750 INCHES NOMINAL
OVERALL WIDTH                           0.750 INCHES NOMINAL
FILTER COLOR                            COLORLESS SINGLE LIGHT 1ST POSITION HORIZONTAL
                                        FULL DISPLAY DIVISION A
FILTER QUANTITY                         1
LAMP INDUSTRY NUMBER                    327
MOUNTING METHOD                         BRACKET
LAMP TYPE ACCOMMODATED AND              1 INCANDESCENT
QUANTITY

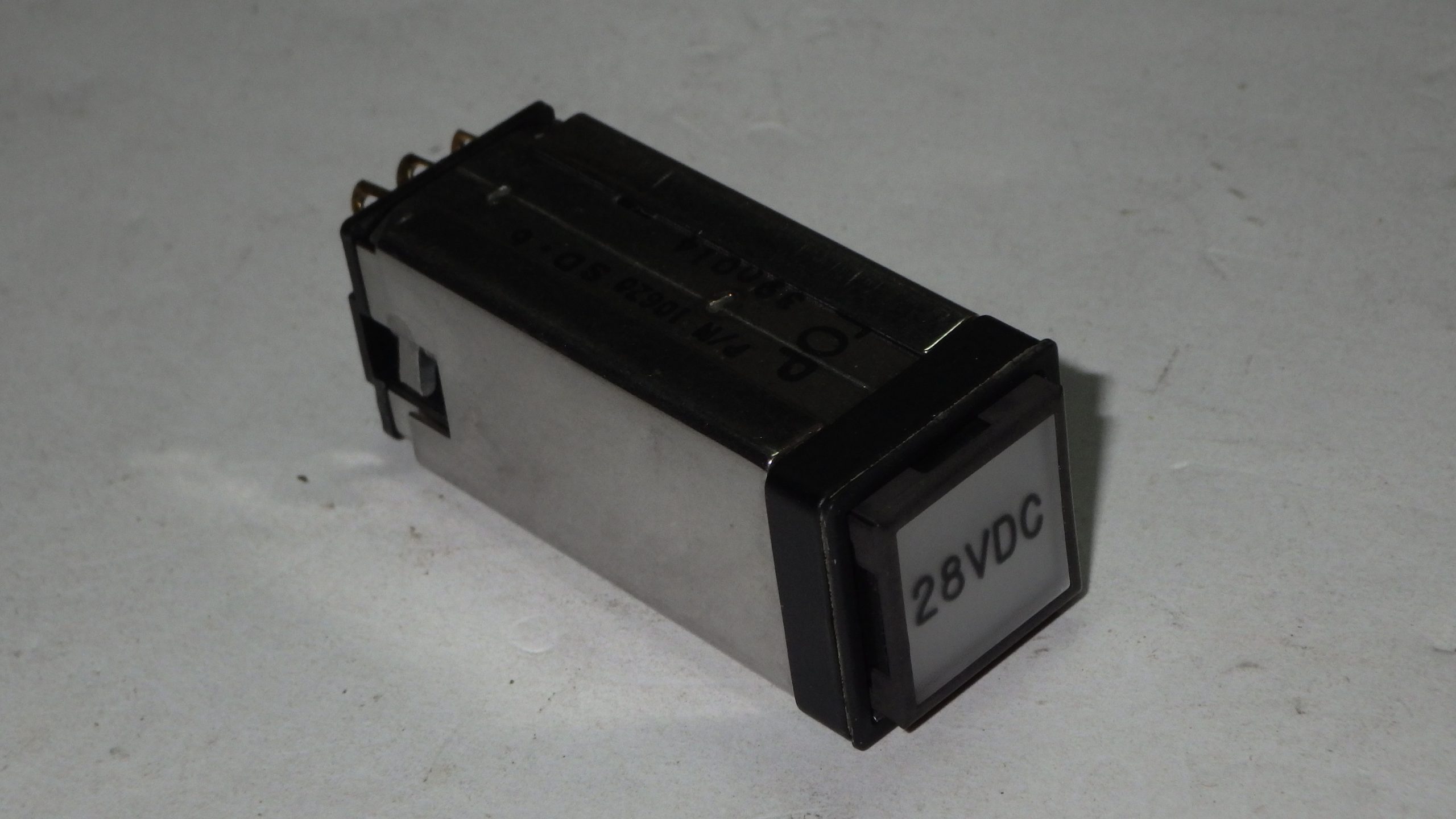

LENS LEGEND                             28VDC SINGLE LIGHT 1ST POSITION HORIZONTAL FULL
                                        DISPLAY DIVISION A
DESIGN CONTROL REFERENCE                390014
THE MANUFACTURERS DATA                  52542
MANUFACTURERS CODE
STYLE DESIGNATOR                        RECTANGULAR FRAME TYPE

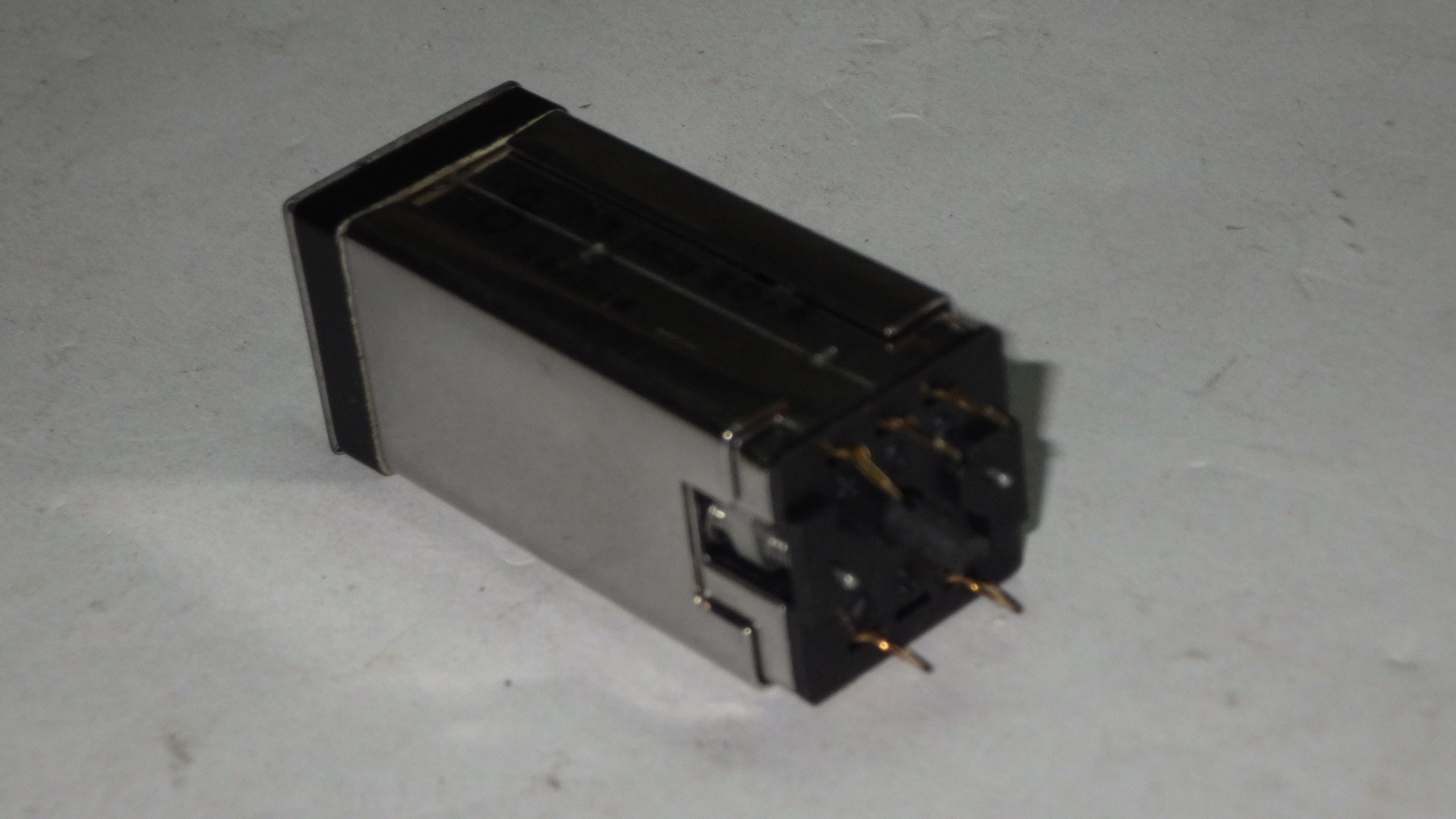

TERMINAL TYPE AND QUANTITY              3 QUICK DISCONNECT, MALE
