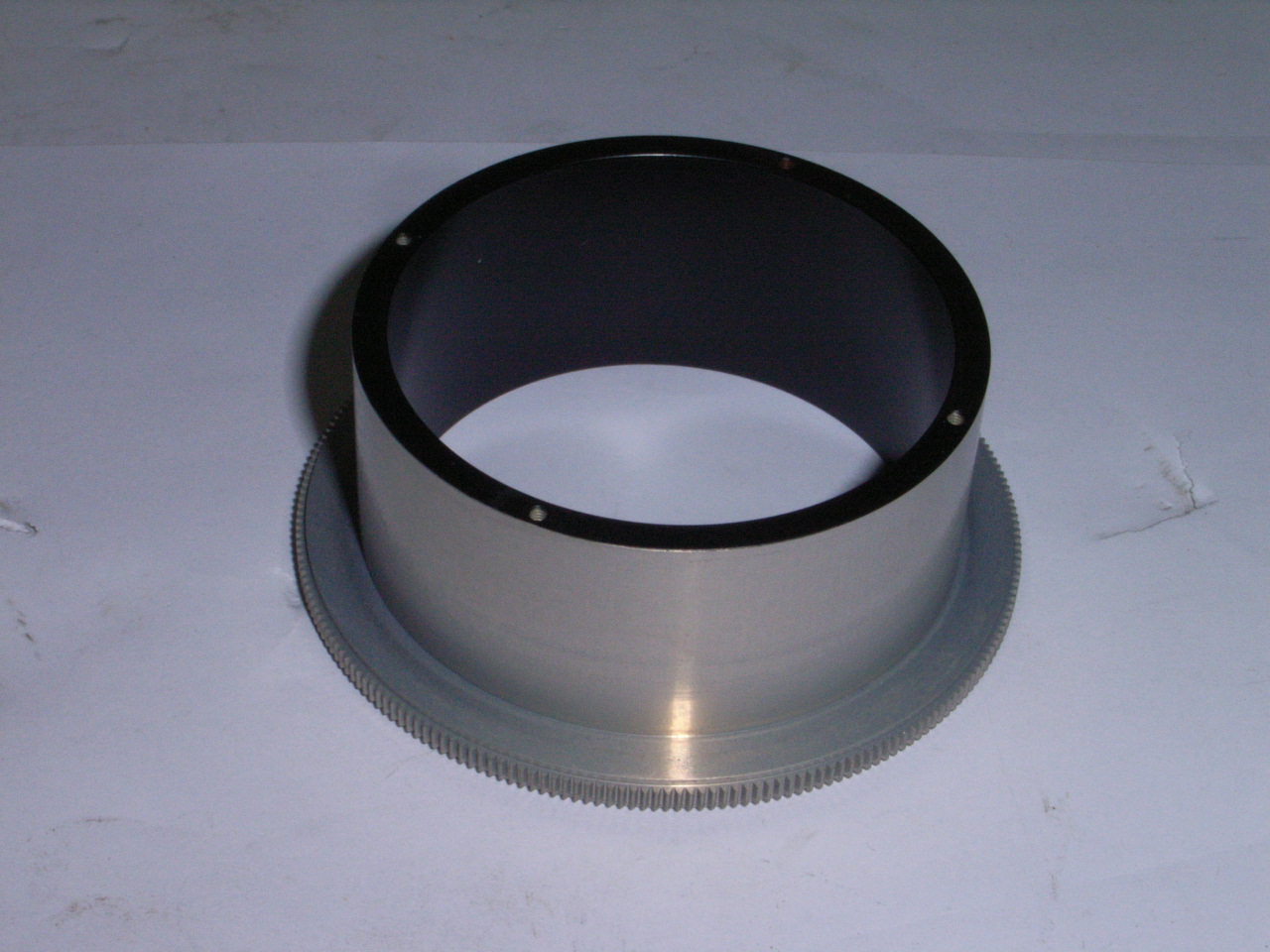

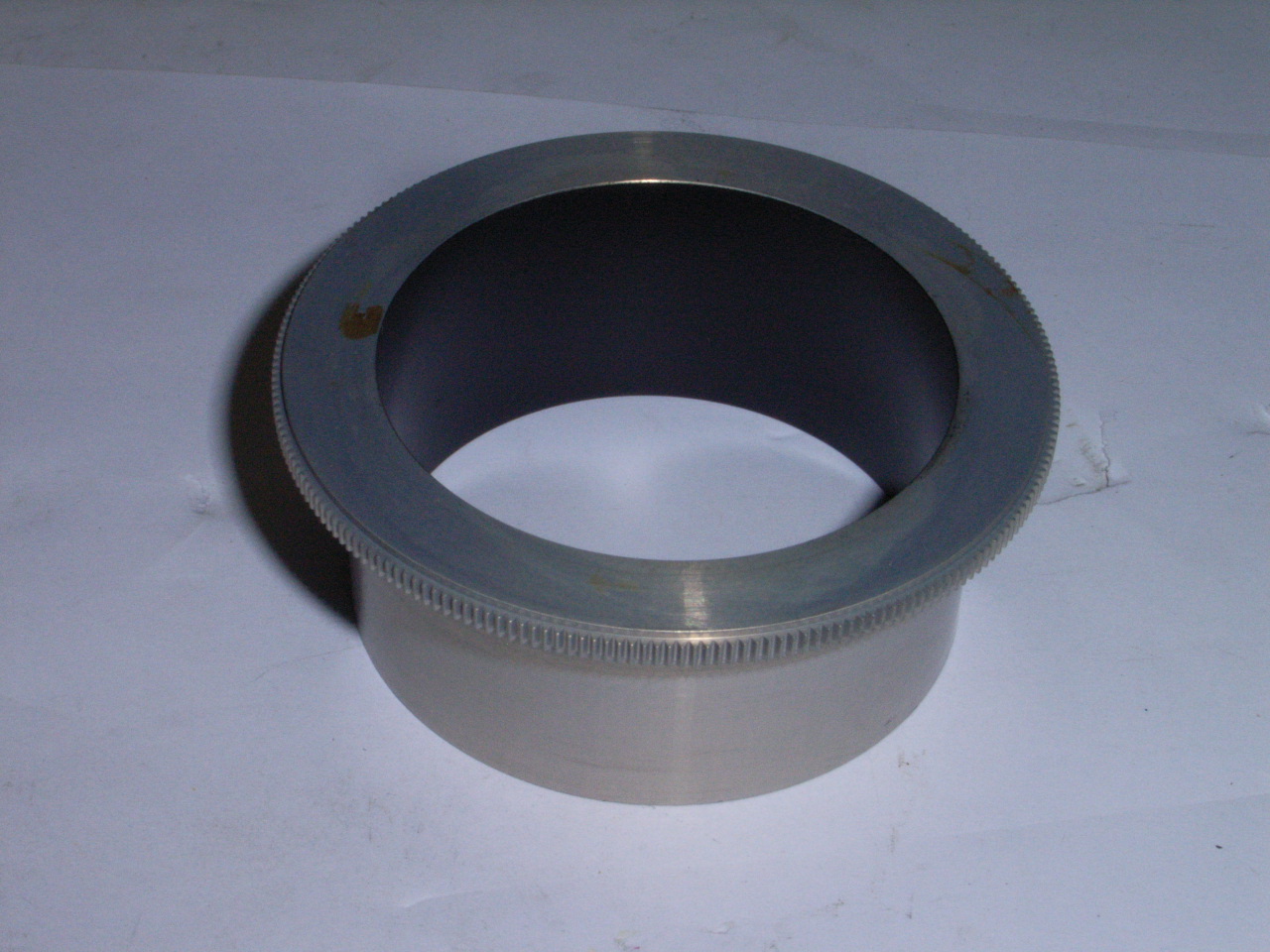

GEAR
P/N 775-5136-001
NSN 3020 00 498 9927

MFG ROCKWELL COLLINS
NEW GOV SURPLUS
SUPPLIER CAGE 03EF7

DEFINITION:  A gear, cylindrical in form, with straight teeth on the outer surface

             parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR.

             For bulk material, see ROD, PINION.





CHARACTERISTIC                          VALUE

BODY STYLE                              PLAIN, SOLID

ATTACHMENT METHOD                       MOUNTING HOLE

PITCH DIAMETER                          2.6990 INCHES MINIMUM AND 2.7000 INCHES MAXIMUM

TEETH QUANTITY                          216

BORE STYLE                              PLAIN BOTH ENDS

MOUNTING HOLE THREAD SERIES             UNF TRANSVERSELY THROUGH HUB, FIRST END

DESIGNATOR

MOUNTING HOLE THREAD                    80 TRANSVERSELY THROUGH HUB, FIRST END

QUANTITY PER INCH

MOUNTING HOLE NOMINAL                   0.060 INCHES TRANSVERSELY THROUGH HUB, FIRST END

THREAD SIZE

MOUNTING HOLE TYPE AND                  4 THREADED TRANSVERSELY THROUGH HUB, FIRST END

QUANTITY

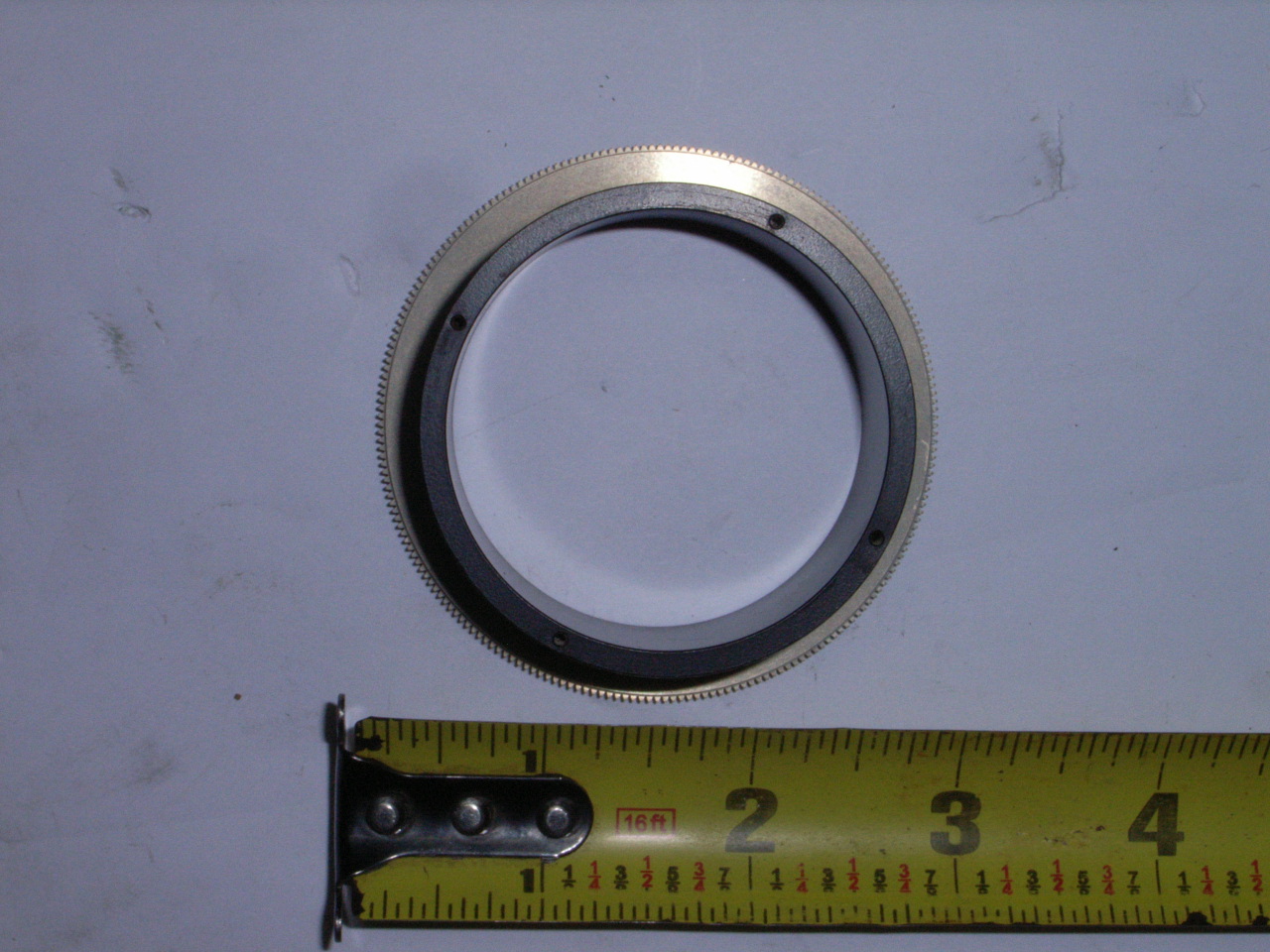

NOMINAL OUTSIDE DIAMETER                2.723 INCHES

NOMINAL OVERALL LENGTH                  1.065 INCHES

TOOTH FORM                              STANDARD

PRESSURE ANGLE                          20.0000 DEGREES

NOMINAL DISTANCE BETWEEN                0.940 INCHES FIRST END

BODY FACE AND PROTRUDING

HUB END

FACE NOMINAL WIDTH                      0.494 INCHES

BORE NOMINAL DIAMETER                   2.000 INCHES BOTH ENDS

HUB STYLE DESIGNATOR                    1 STEP FIRST END PLAIN SECOND END

HUB NOMINAL DIAMETER                    2.644 INCHES SECOND END

END NOMINAL LENGTH                      0.031 INCHES FIRST END

END NOMINAL DIAMETER                    2.249 INCHES FIRST END

FIRST STEP NOMINAL LENGTH               0.909 INCHES FIRST END

FIRST STEP NOMINAL DIAMETER             2.644 INCHES FIRST END

MATERIAL                                ALUMINUM ALLOY 6061 OVERALL

MATERIAL DOCUMENT AND                   QQ-A-250/11,T6 FED SPEC SINGLE MATERIAL RESPONSE

CLASSIFICATION                          OVERALL

SURFACE TREATMENT                       ANODIZE OVERALL

DESIGN CONTROL REFERENCE                775-5136-001

THE MANUFACTURERS DATA                  13499

MANUFACTURERS CODE

SURFACE TREATMENT DOCUMENT              MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE

AND CLASSIFICATION                      OVERALL

STYLE DESIGNATOR                        PROTRUDING HUBS
