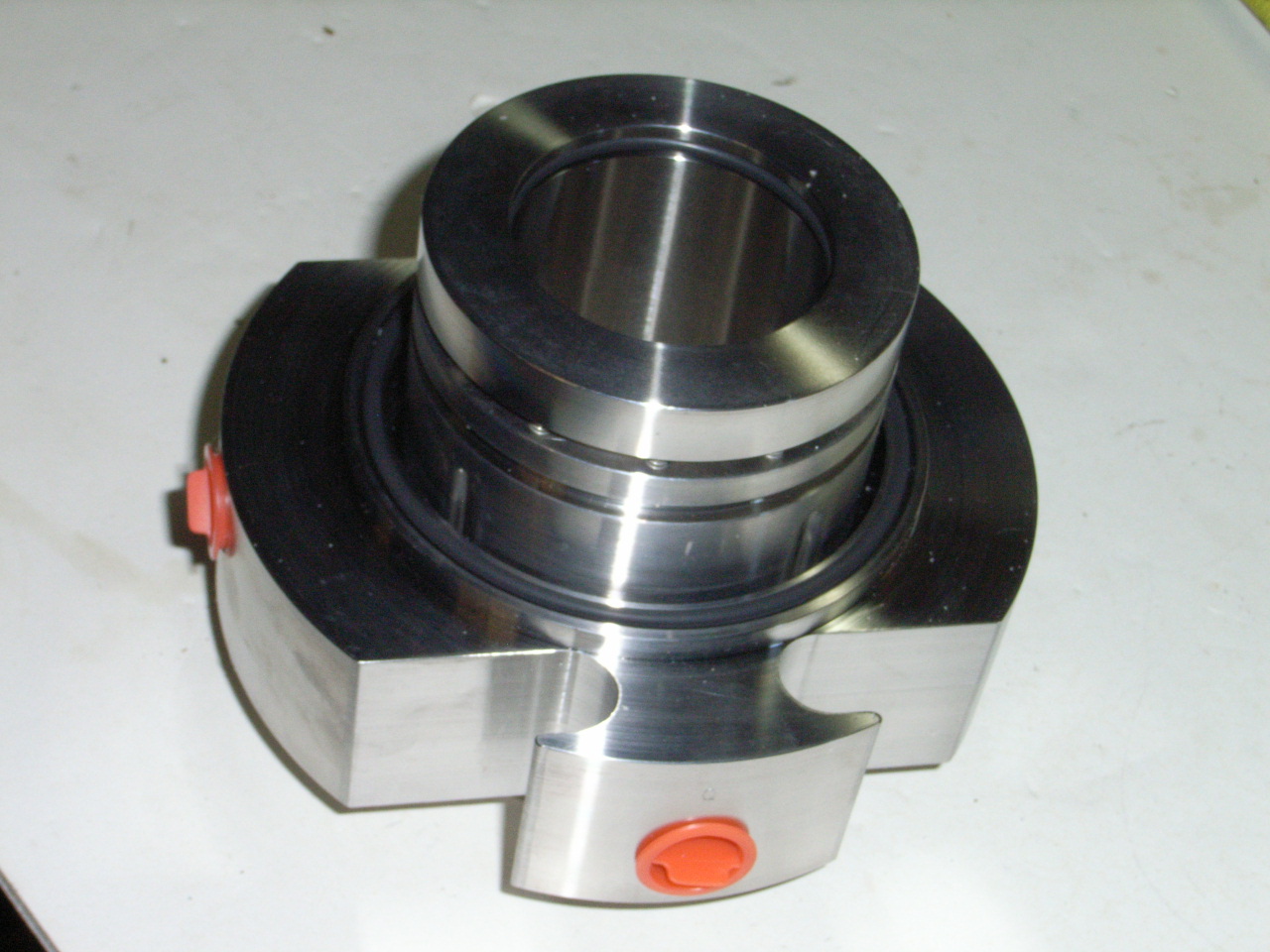

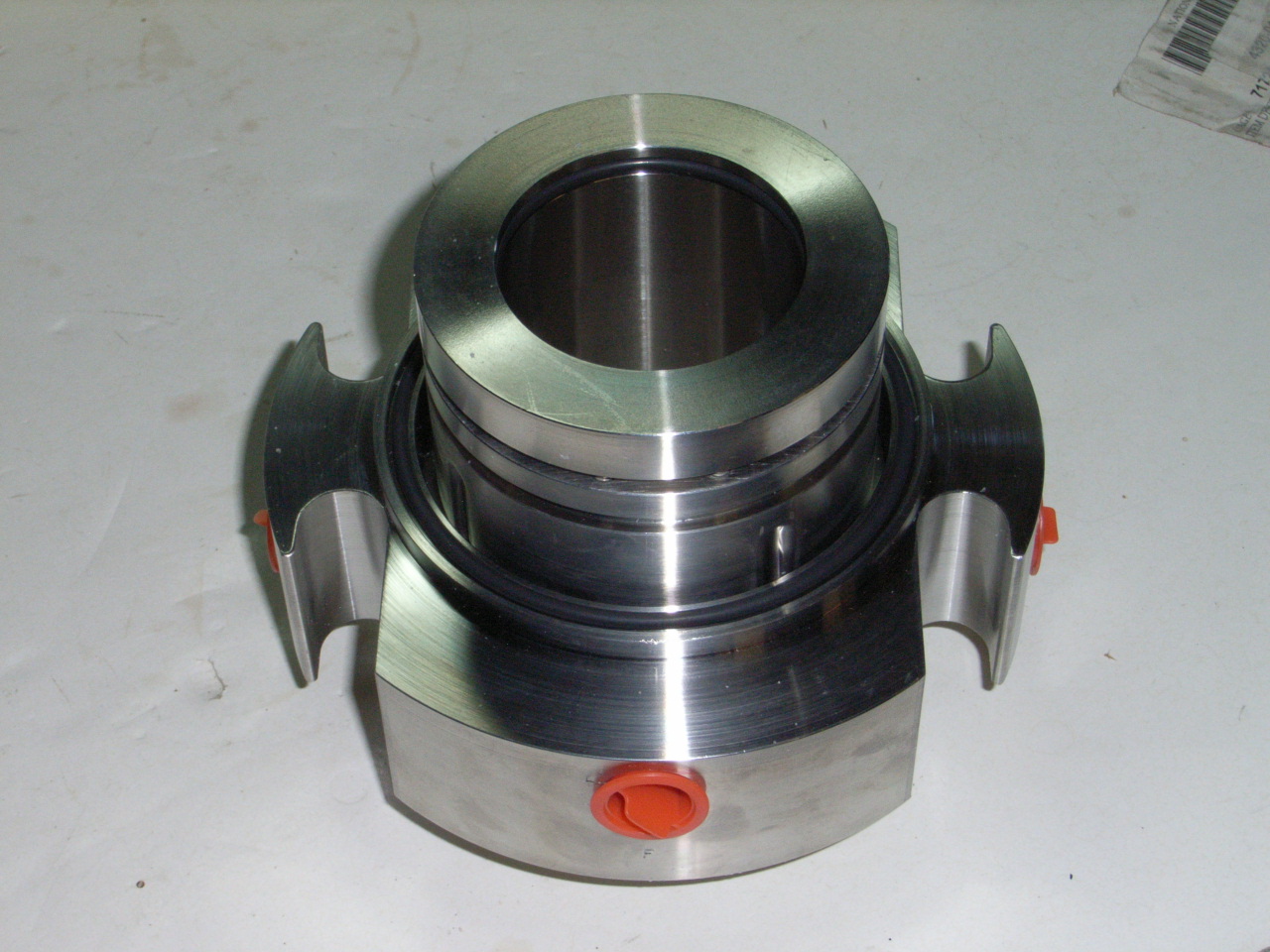

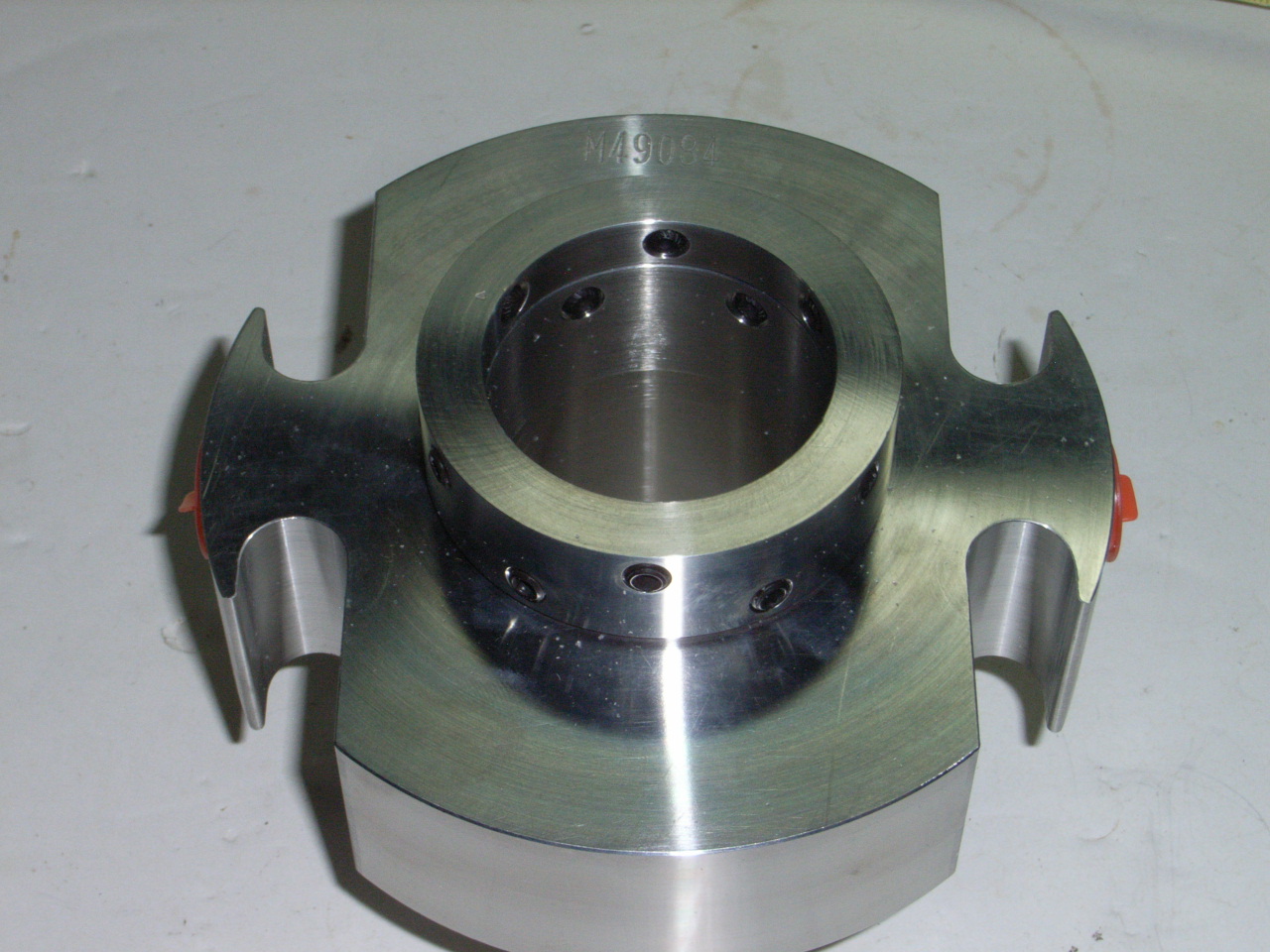

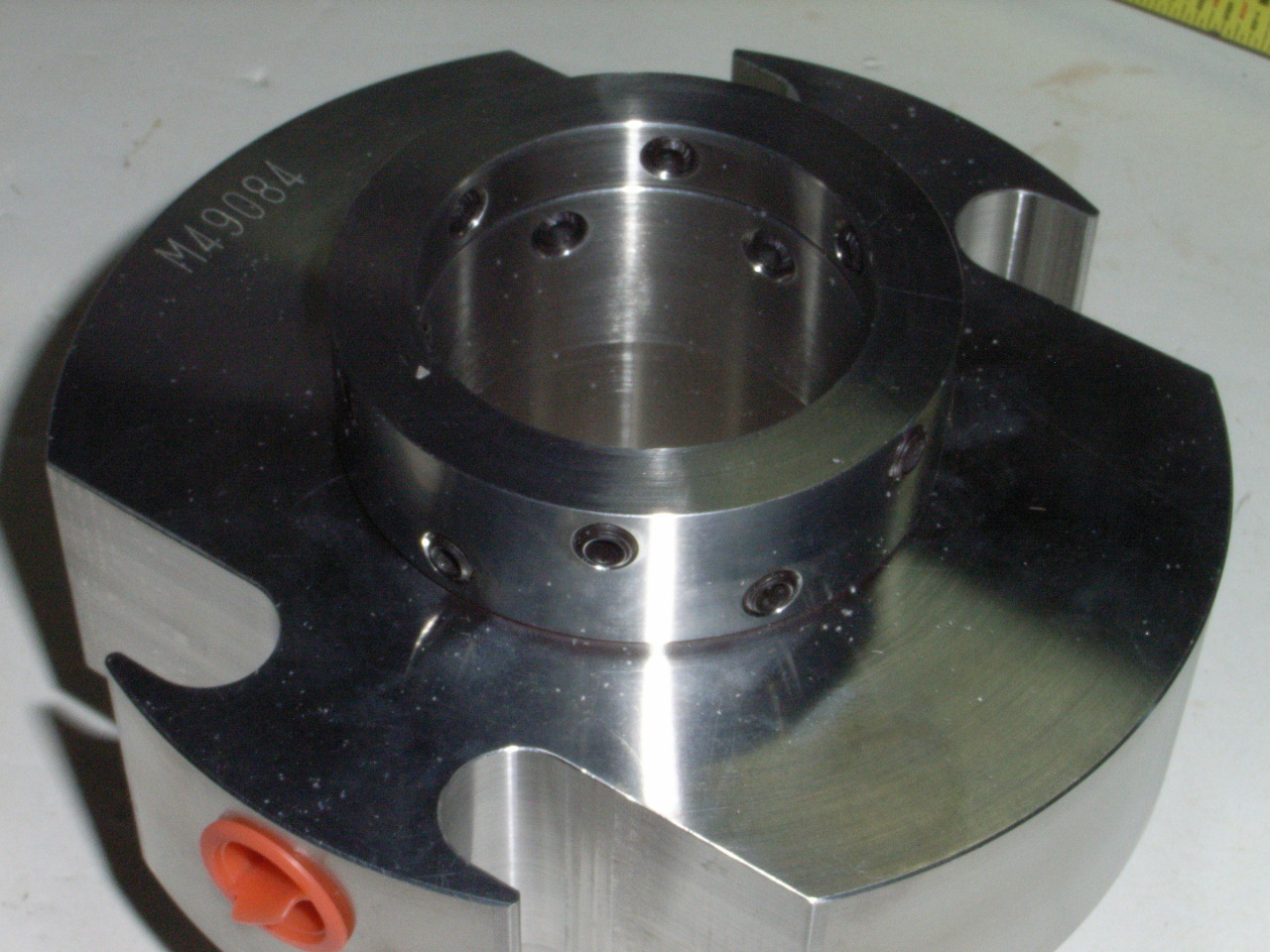

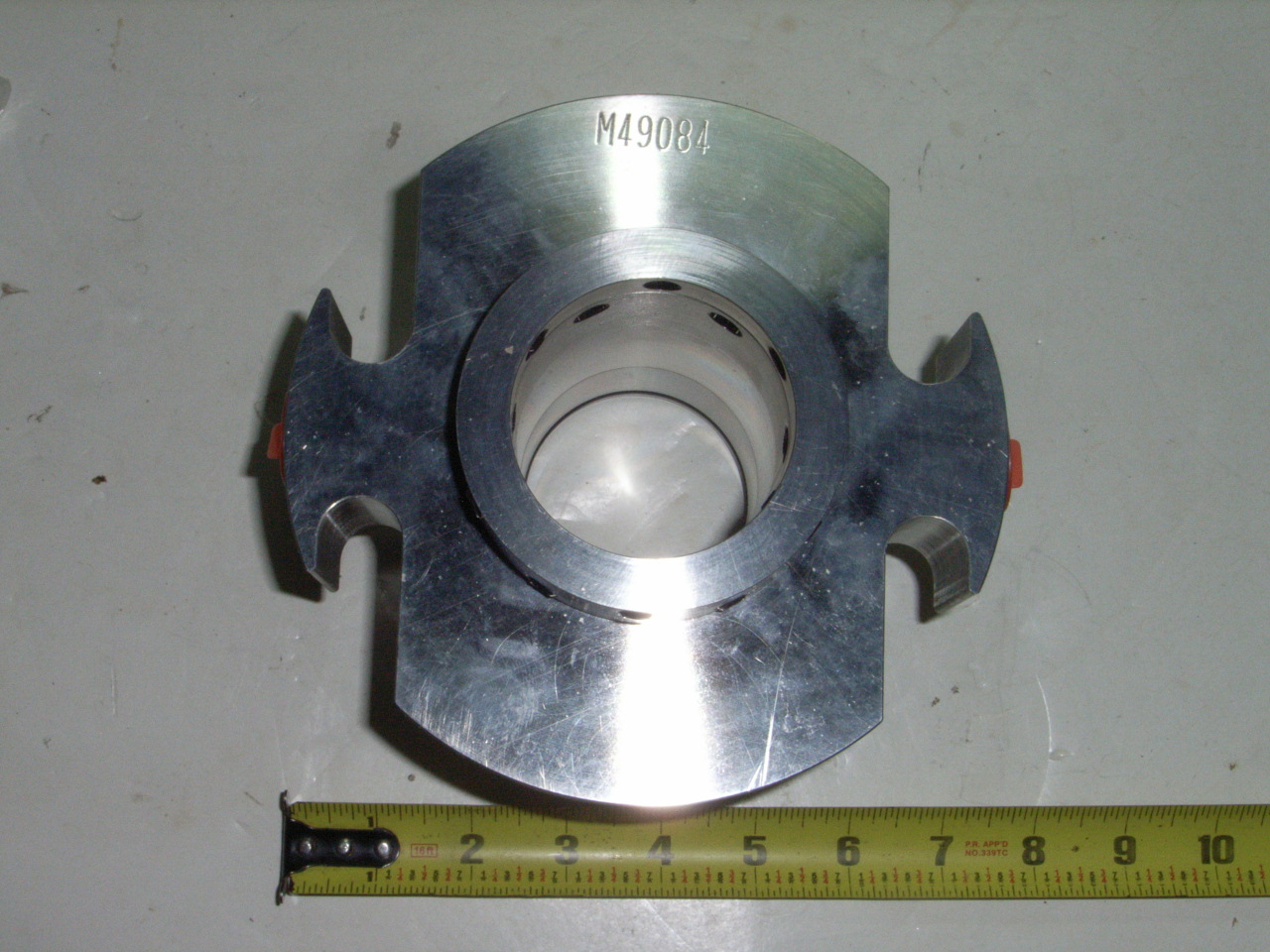

CRANE SEAL ASSY
P/N CFS80303/X/QF2010151
PN CFSP-80303
PN 320-1750-000
PN  36701 ITEM 69
NSN 4320-01-137-4545
MFG JOHN CRANE
NEW GOV SURPLUS
SUPPLIER CAGE CODE 03EF7
ITEM NAME:   SEAL ASSEMBLY,SHAFT
DEFINITION:  A combination of items used in sealing various rotary shaft equipment.

             It may include items such as bellows, disk, drive ring, flexible

             diaphragm, mating ring, o-ring, retainer, seat, sleeve, washer and the

             like. Excludes SEAL, PLAIN ENCASED.
CHARACTERISTIC                          VALUE
DESIGN CONTROL REFERENCE                CFSP-80303
THE MANUFACTURERS DATA                  71724
MANUFACTURERS CODE
GENERAL CHARACTERISTICS                 CONSISTS OF VITON O-RINGS AND BELLOWS; NICKEL
ITEM DESCRIPTION                        BOUND TUNGSTEN CARBIDE STATIONARY MATING RING; AND

                                        STAINLESS STEELTYPE 316 SPRINGS AND METAL PARTS
