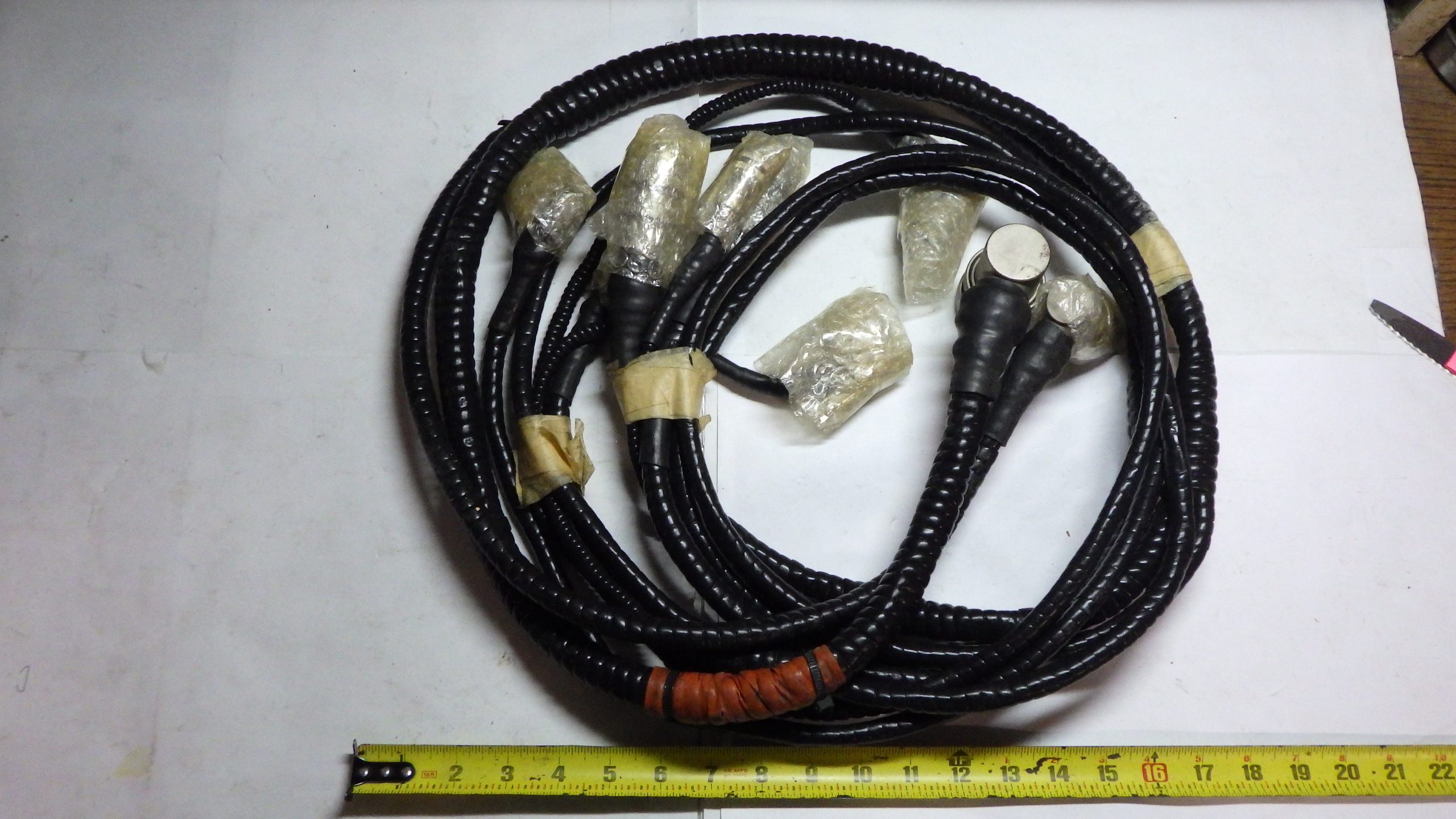

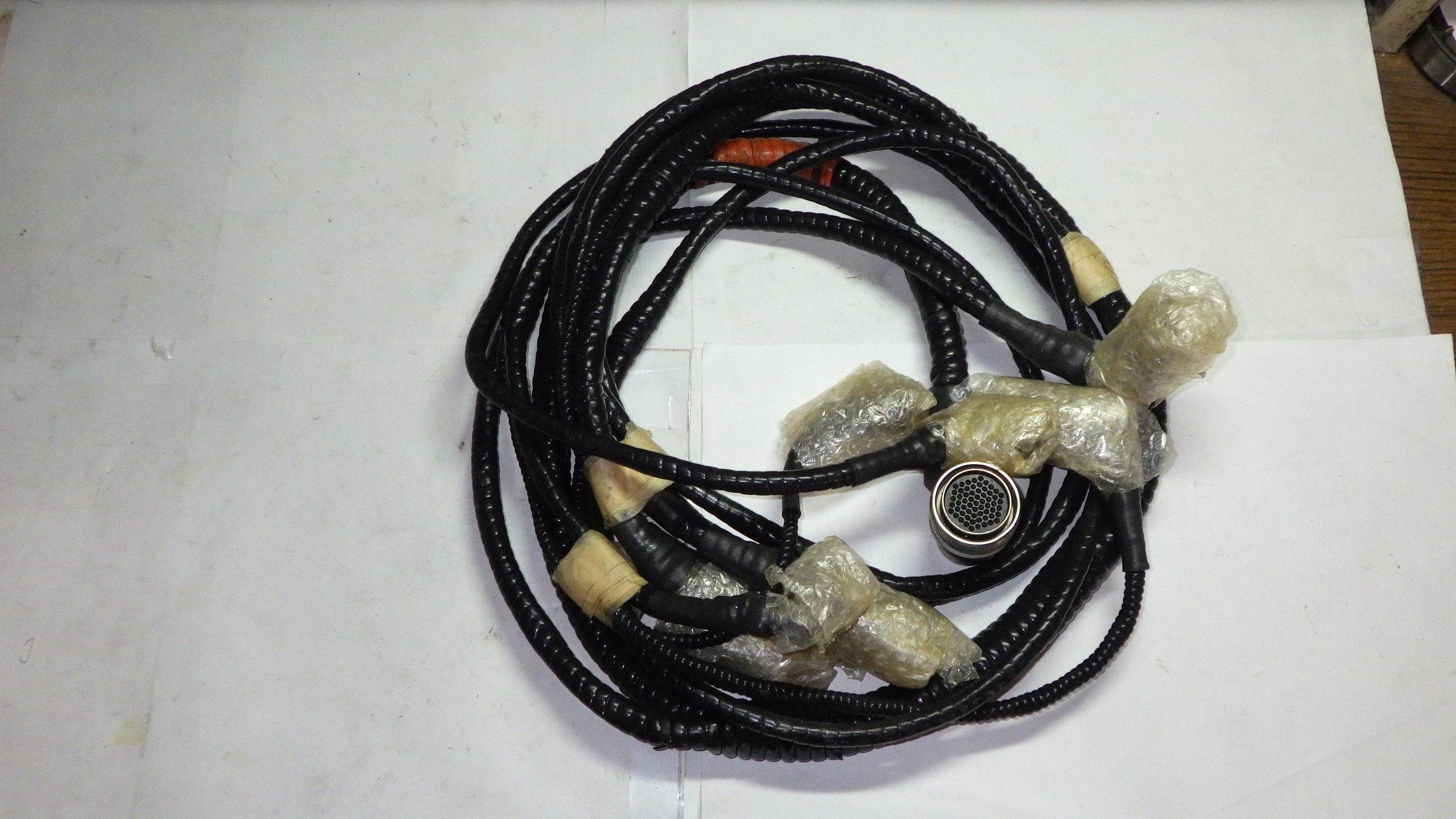

CABLE ASSEMBLY

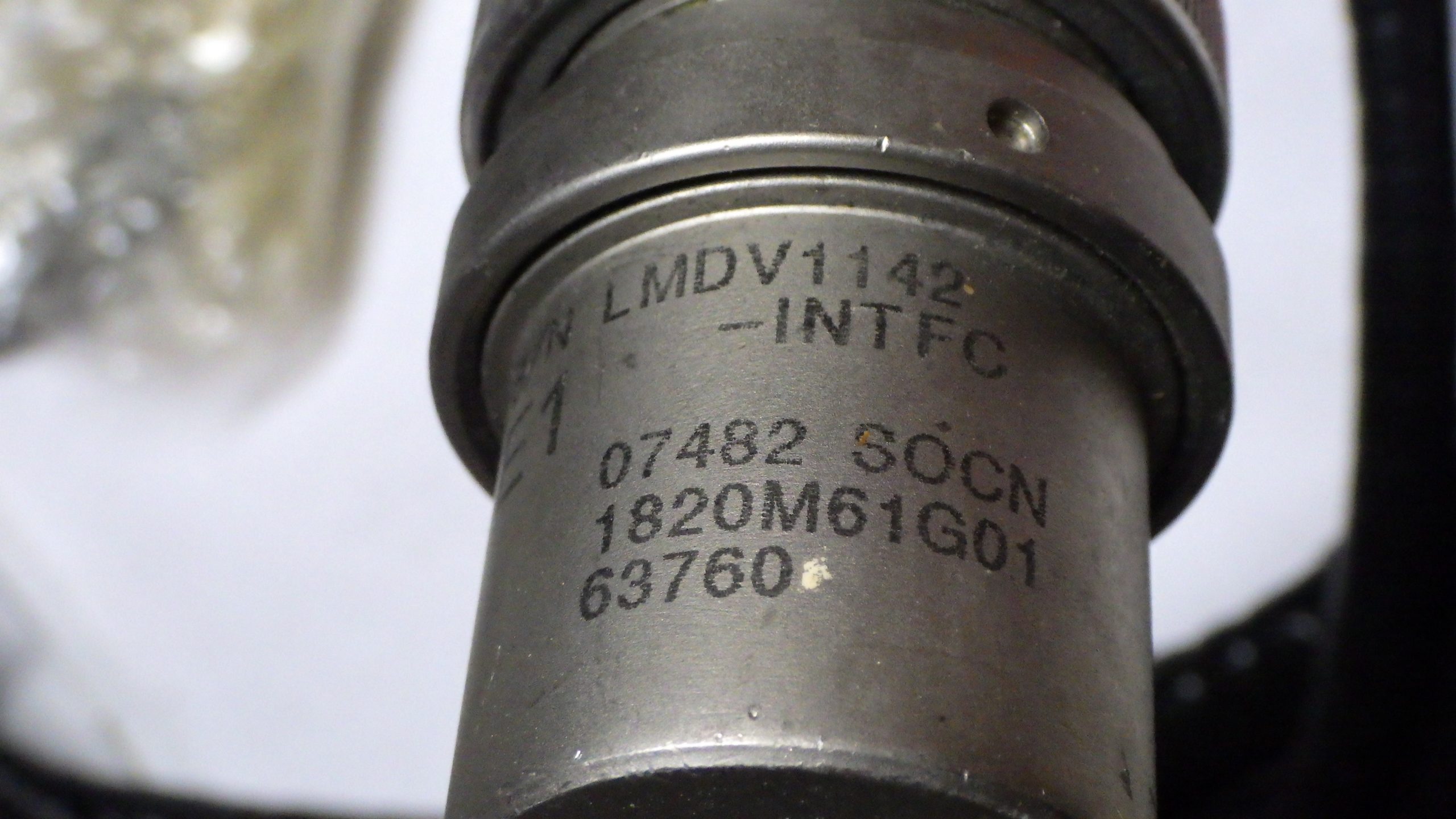

P/N 1820M61G01
P/N 111E9225G01
NSN 6150 01 428 4493
MFG BAE SYSTEMS

NEW GOV SURPLUS
SUPPLIER CAGE CODE 03EF7

ITEM NAME   CABLE ASSEMBLY,SPEC
DEFINITION  A definite continuous length of CABLE, SPECIAL PURPOSE, ELECTRICAL
             with branches (forks), and having one or more ends processed and/or
             terminated in fittings to provide for connection to other items.
             Excludes LEAD, TEST. See also wiring harness.


CHARACTERISTIC                          VALUE
III END ITEM IDENTIFICATION             F0110100

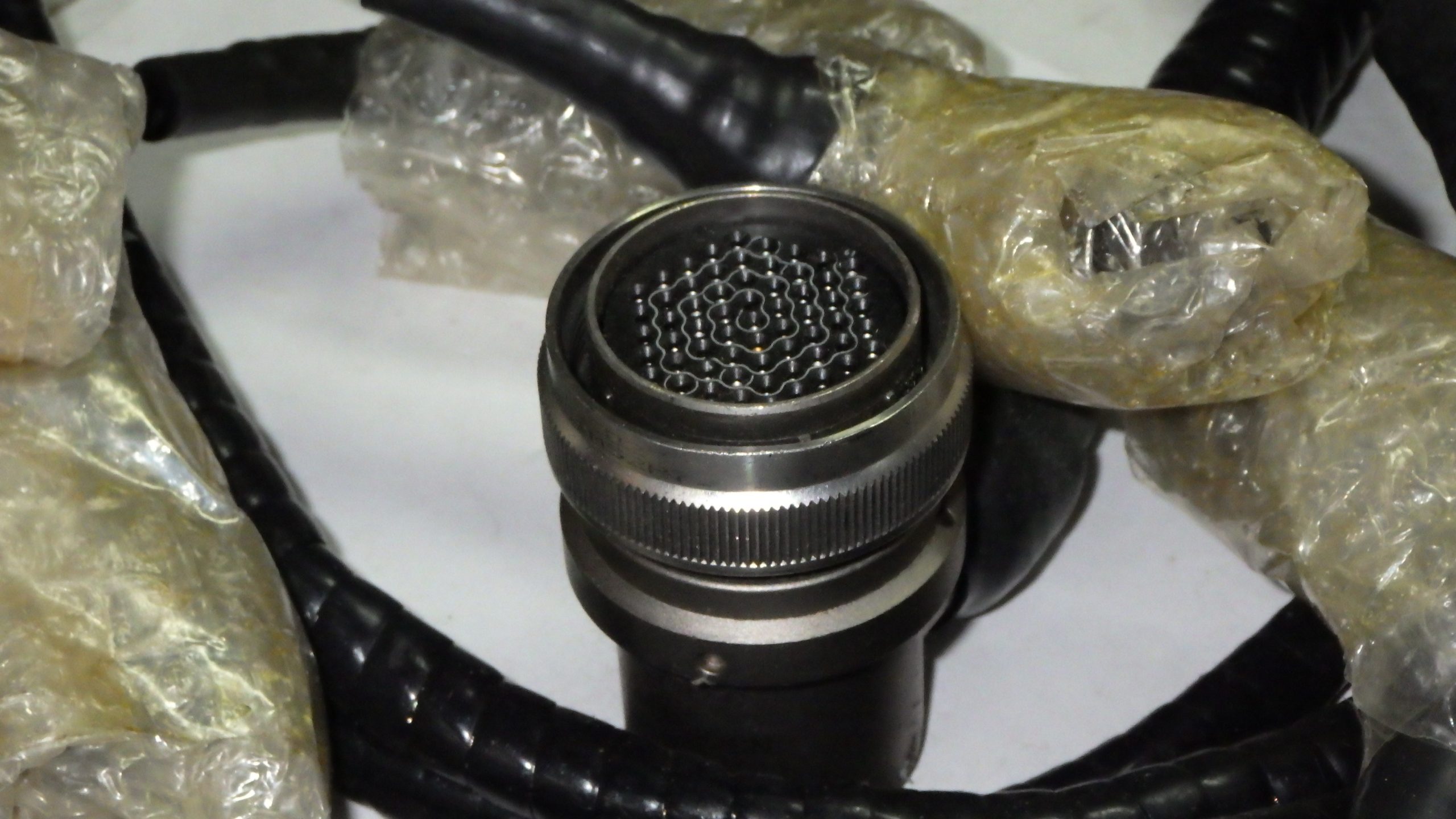

TERMINATION TYPE                        CONNECTOR PLUG ALL ENDS ALL CONDUCTORS
BINDING METHOD                          SLEEVE AND TAPED AND WIRE BOUND
III CONDUCTOR QUANTITY                  42
CABLE ASSEMBLY OVERALL                  150.500 INCHES NOMINAL
LENGTH
III PART NAME ASSIGNED BY               CABLE, ELECTRICAL W1
CONTROLLING AGENCY
TERMINAL MANUFACTURER                   173M77P79 1ST END ALL CONDUCTORS 1753M77P49 2ND
IDENTIFYING REFERENCE                   END ALL CONDUCTORS 1697M28P56 3RD END ALL
NUMBER                                  CONDUCTORS 1697M28P57 4TH END ALL CONDUCTORS
                                        1753M77P07 5TH END ALL CONDUCTORS 1798M78P03 6TH
                                        END ALL CONDUCTORS 1753M77P14 7TH END ALL
                                        CONDUCTORS 1753M77P13 8TH END ALL CONDUCTORS
                                        1820M72P06 9TH END ALL CONDUCTORS
BRANCH QUANTITY                         8
SPECIAL FEATURES                        CABLE ELECTRICAL SIMILAR TO P/N 4013436-351 GE
MATERIAL                                COPPER CORE CONDUCTOR ALL CONDUCTORS
MFR SOURCE CONTROLLING                  1820M61G01
REFERENCE
SPEC/STD CONTROLLING DATA               07482
