PIN P/N 11391

NSN Number : 5315 00 829 8347 Category :

$75.00

Part Number: 5315 00 829 8347

Manufacturer: EATON AVIATION CORP

Manufacturer's Product Number: 5315 00 829 8347

Condition: New

83 in stock

PIN
P/N 11391
NSN 5315 00 829 8347
MFG EATON

NEW GOV SURPLUS
SUPPLIER CAGE CODE 03EF7

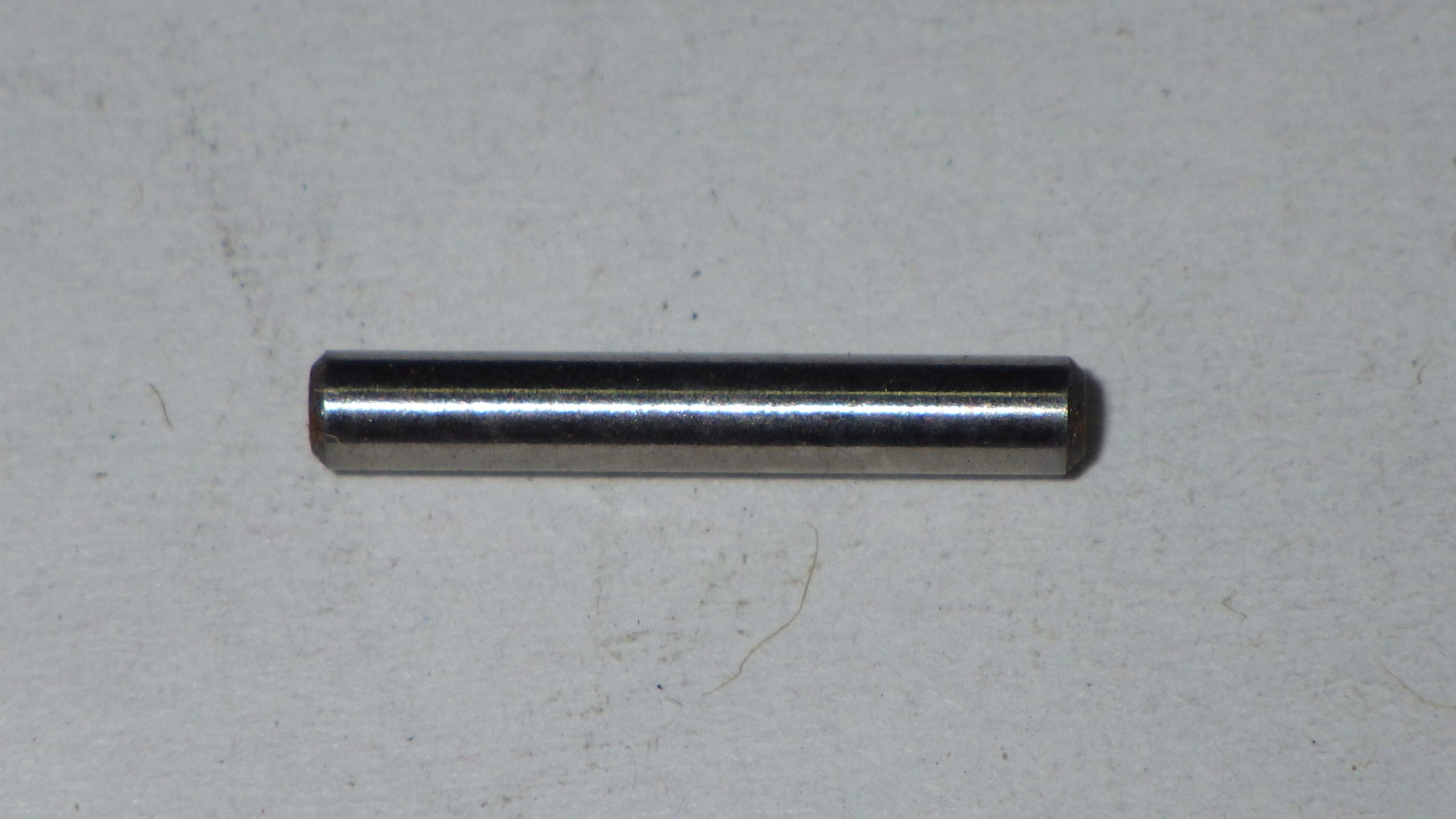

ITEM NAME: PIN,STRAIGHT,HEADLE
DEFINITION: A headless, cylindrically-shaped item having a straight, smooth, solid
body, with or without a drilled hole(s). It has an outside diameter
equal to or less than its length. Its length must not exceed twelve
inches (304 MM); for items whose length exceeds twelve inches (304
MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer
of torque and/or thrust, by fitting into corresponding holes of
another item. See also PIN, STRAIGHT, THREADED.

CHARACTERISTIC VALUE
FIRST END STYLE CHAMFERED

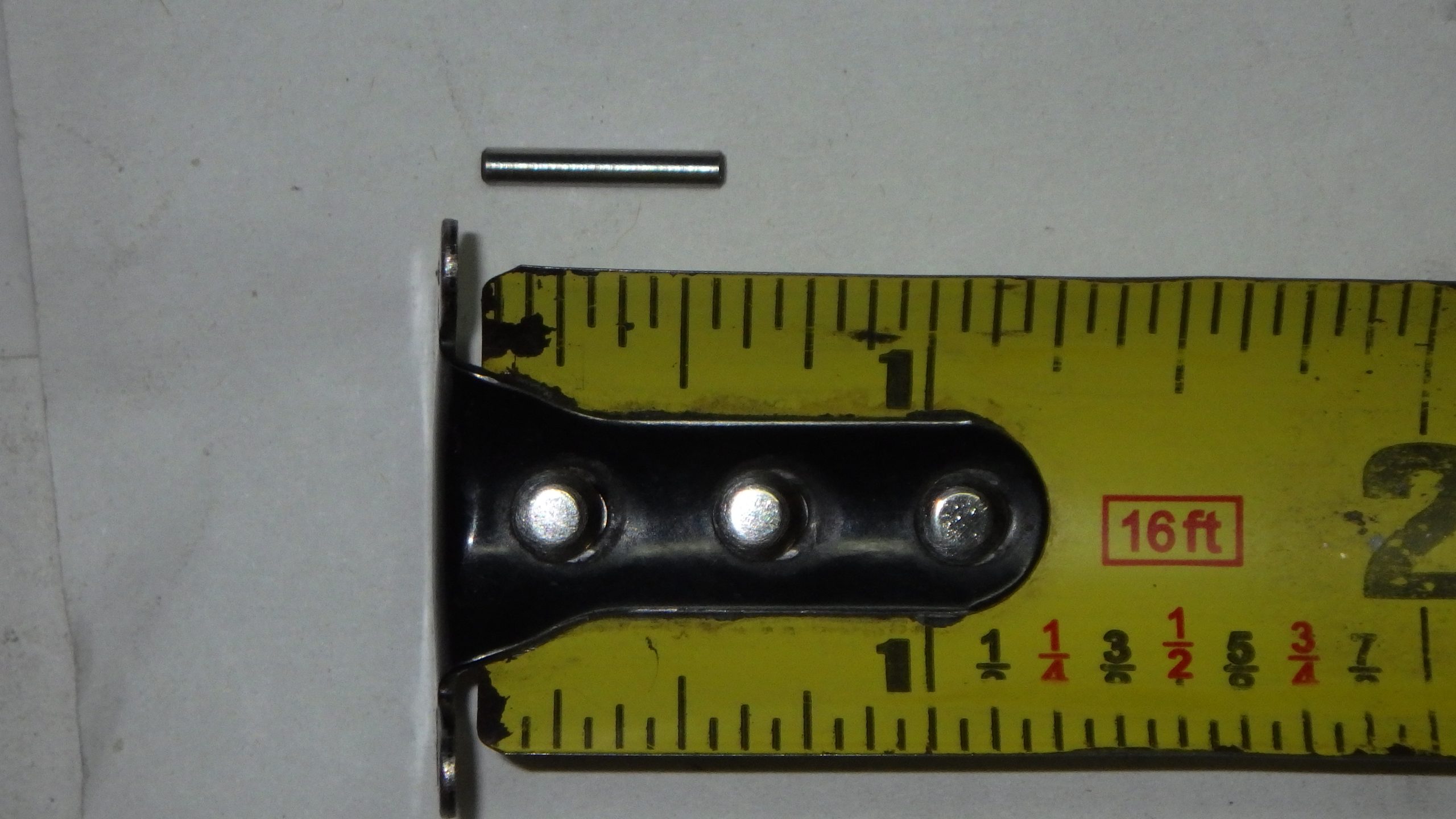

PIN OVERALL LENGTH 0.500 INCHES NOMINAL
PIN OVERALL DIAMETER 0.0770 INCHES MINIMUM AND 0.0780 INCHES MAXIMUM
FIRST END TAPER LENGTH 0.010 INCHES NOMINAL
SECOND END RELATIONSHIP IDENTICAL
WITH FIRST END
FIRST END TAPER ANGLE 45.0 DEGREES NOMINAL
MATERIAL STEEL COMP 630 OVERALL
MATERIAL DOCUMENT AND AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
CLASSIFICATION
SURFACE TREATMENT PASSIVATE OVERALL
DESIGN CONTROL REFERENCE 11391
THE MANUFACTURERS DATA 99643
